Automatic Bottle Screw Press Capping Machine

Product Description

Product DescriptionBrief Introduction

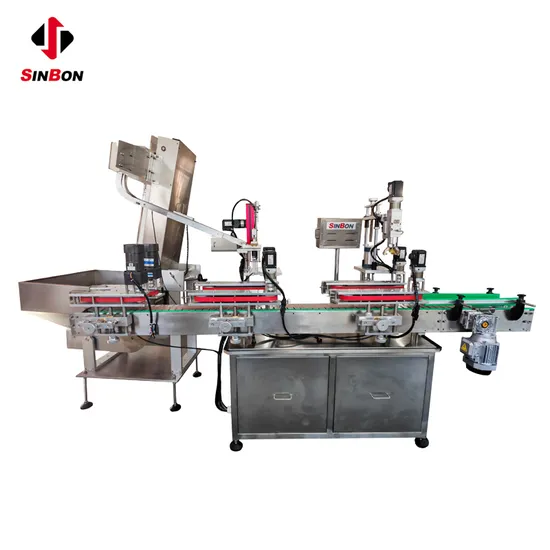

The fully automatic servo capping machine is an electrical integrated equipment designed and developed by our company. The machine consists of HMI, PLC, servo capping mechanism, servo bottle clamping and positioning mechanism, PPU manipulator automatic capping mechanism, automatic capping elevator and linear conveyor. It can realize the capping or pressing operation of 0.5-5L bottles, mainly meeting the automatic capping needs of the pharmaceutical industry, food industry, cosmetics industry and other industries.
AdvantagesLinear design, suitable for fast adjustment and replace different size bottlesAdjustable capping speed, with torque protection function to avoid damage to the cap due to high torqueUsing PPU manipulator to take and put caps, the position of taking caps is fixed, no need to adjust the tilt angle and position of the cap elevator, it can quickly replace different size of caps.By replacing the capping heads, it can be applied to different size bottle caps to achieve multi-purpose of one machine; replacing with a capping head, it can also press cap on bottle.All parameters can be adjusted on the HMI, and the operation is simple and convenient
FeaturesStable and reliable capping quality, convenient replacement of capping heads, suitable for batch production of multiple varietiesAutomatic sensing of bottles for capping, easy to operateTorque protection function can maintain constant torque capping, protecting the bottle cap from damage caused by high torque
ApplicationSuitable for screwing or pressing caps on various bottles of 0.5-5L. Other size of bottles and caps can be customized.

Model No.	SCM-400
Bottle Height	Max. 240mm
Bottle Diameter	Max. 110mm
Caps Size	20-80mm
Air Source	0.4-0.6Mpa
Speed	25-35pcs/min.
Power Source	AC220V;50HZ;1P
Dimension	2400*700*1400mm
Weight	350kg

Certifications
Packaging & Shipping
Company Profile
FAQ
Q1: Which trade term used for displayed prices?A1: All prices are based on EXW, because freight changed too much during this special situation, please check with us for real freight costQ2: How to install and commissioning machine?A2: This machine don't need special installation, connect with right power source, machine can work. Other operation guide, please contact with us, we can offer you video or online guide you to operate machine. Fast support to ensure you don't need worry about after sales service.Q3: WarrantyA3: Our machine standard warranty period is 12 months. For the whole life of machine, we offer you remote technical support for free and offer spare parts based on costs.Q4: Are you trader or manufacturer?A4: We are manufacturer and we design and produce SINBON brand machines. We can custom made machine based on your special requirements.

---
