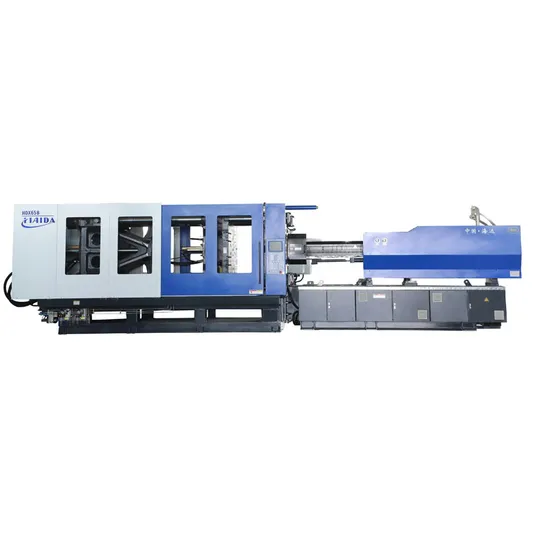

Haida Model HD1250L 1250ton Injection Molding Machine

Product Description

Product Description
L series High precision Servo Energy-saving Injection Machine is a new series model launched on the base of original series, to meet higher requirement of customers. The overall standardization has implemented for the new series models, and the product structure has been simplified to ensure maximum reliability. Apply latest 3D control technology to ensure consistent high quality at lowest price. These products have adopted ergonomics design and components of famous brands, to ensure product quality of every detail. HAIDA L series high precision servo energy-saving injection machine with more advanced design concept, more reliable hardware configuration and higher cost performance is an ideal choice for mid-high end hydraulic machine users, and has built a new standard in the field of mid-high injection machine.
Detailed Photos
Product Parameters

ITEM		UNIT	DATA- HD1250L
Injection Unit	Screw Diameter	mm	120	130	140
	Screw L/D Ratio	L/D	24.2	22.3	20.7
	Injection Volume	cm3	6556	7694	8923
	Shot Weight	g	5966	7002	8120
	Injection Pressure	Mpa	179	152	131
Clamping Unit	Clamping Force	KN	12500
	Opening Stroke	mm	1300
	Space Between Tie-Bars	mm	1260x1260
	Mould Thickness(Min-Max)	mm	500-1300
	Hydraulic Ejection	KN	282.6
	Ejector Stroke	mm	350
General	System Pressure	Mpa	16
	Motor Power	KW	55+55
	Heater	KW	78.3
	Machine Dimension	m	13.45x3.05x2.80
	Machine Weight	T	70
	Mould Orientation Ring Diameter	mm	Φ250
	Nozzle Radius	mm	SR20

Application
APPLICATION FIELD:
Auxiliary Machines
Company Profile
HAIDA MACHINERY established in the year 1991 at Ningbo, is one of THE TOP 10 CHINESE injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.

Packaging & Shipping
Exhibition and others

---
