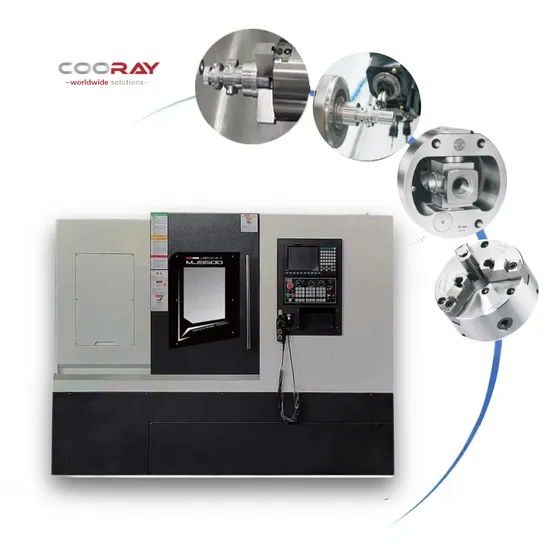

Cooray Crl-Dt52 Power Turret Slant Bed Tailstock Fanuc/Siemens CNC Turning Milling Compound Machining Center Lathe

US$100,000.00-150,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CRL-DT52
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Condition
New
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Energ
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Transport Package
The Two Sides Negotiate Logistics.
Specification
2500x2460x2050mm
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000

Packaging & Delivery

Package Size
250.00cm * 246.00cm * 205.00cm
Package Gross Weight
4800.000kg

Product Description

Product Description
Interpolation Ypower turret+fixed power turret,dual spindle
CNC turning &milling compound machine tool
Item Model CRL-DT52
System FANUCSYNTEC 220TB
Processing capacity max.machining diameter 0220mm
max.rotation diameter 0320mm
max.machining length 200 mm
max.grip bar diameter 045mm
through hole diameter 056mm
Travel Z1-axis travel 340mm
X1-axis travel 180mm
YS-axis travel ±50MM
Z2-axis travel 300mm
X2-axis travel 320mm
moving speed 30m/min(Z/X/Y)
Accuracy position 0.005mm
re-position 0.005mm
Motor power Z1/Z2/X2-axis feed servomotor power 18KW
X1-axis feed servo motor power 18KW
YS-axis feed servo motor power 18KW
main spindle motorpower 11KW
sub spindle motor power 11KW
turret power servo motor power 3.1KW
turret ex-change servo motor power 750W
Machine dimension 2500x2460x2050mm
weicht 4800KG
