Suntech China High Quality Prestressed Concrete Bar PC Bar Production Line with High Speed

Product Description

PC Bar Production Line
Product Description

I. Whole Work Flow:
Pay off → Wire arranging→ Mechanical descaling→ Horizontal type wire drawing and forming machine → Vertical and horizontal straightening → Three roll clamping and driving→ Cleaning unit →Heating No.1 →Heating No.2 →Heating No.3 → Heat Preservation → Cooling for Quenching → Induction Tempering → Heat Preservation →Cooling for Tempering →Three roll clamping and driving → Shearing → Wire separating → Wire take-up
Product Parameters
II. Main Technical Parameters:

No.	Item	Specification
1	Raw material	30MnSi,30Si2Mn and other alloy spring steels
2	Diameter	Φ 7.0-13.0mm
3	Working speed	90-100m/min for type φ 7.1mm; 80-90m / min for type φ9.0mm; 65-70m/min for type φ 10.7mm; 40-45m/min for type φ 12.6mm.
4	Induction quenching temp.	≤950ºC constant and adjustable
5	Induction tempering temp.	≤450ºC constant and adjustable
6	Temp. control accuracy	≤ ±5ºC
7	Take-up coil dimension	φ1800-φ2400mm
8	Pay-off	Horizontal rotating type pay off
9	Center elevation	1000mm
10	Production method	Continuous production
11	Finished products	1) Products keep consistence with "GBT5223.3-2005" and "JISG3137-1994"

Detailed Photos
III. Details of machine for reference:

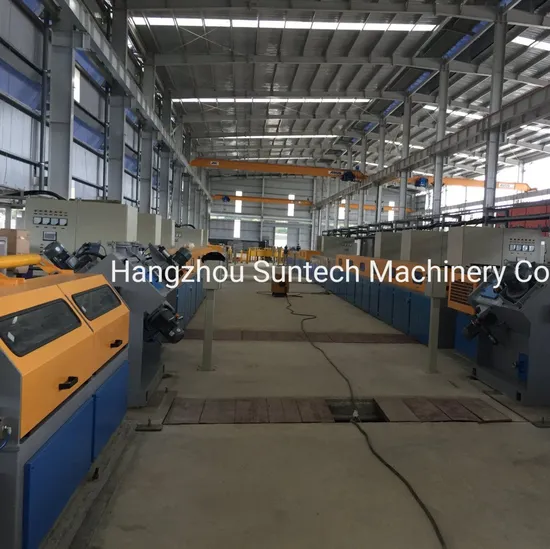

IV. Our Workshop:
V. Clients list for reference:
