| Product Attributes | |

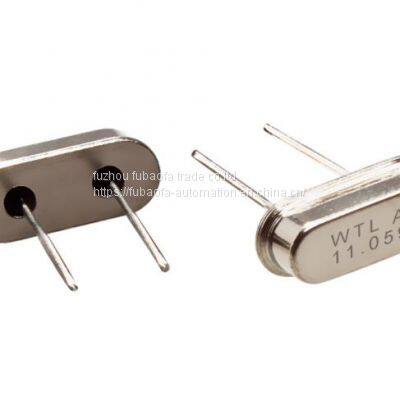

| P/N | WTL 2.03269 |
| Series | WX6 |
| Size / Dimension | 11.05*4.7*3.5 mm |
| Frequency | 6.144MHz |
| Load Capacitance(CL) | 30pF |
| Frequency Tolerance (at 25°C) | ± 30ppm |
| Frequency Stability Over Operating Temperature Characteristics | ± 30ppm |
| Operating Temperature Range | -20°C--+70°C |
| Operating Mode | Fundamental / AT |
| Package / Case | DIP |
| Packaging | Tape & Reel (TR) |
| Storage Temperature Range | -55 °C to + 125 °C |
| Shunt Capacitance (C0) | 5.0 pF Max |
| Driver Level | 10µW~100µW |
| Equivalent Series Resistance ESR | 60Ω Max |
| Aging @25°C 1st year (Max) | ± 3ppm/year |
| Shock Resistance | Drop test of 3 times on 2mm stainless plate from 75cm height |
