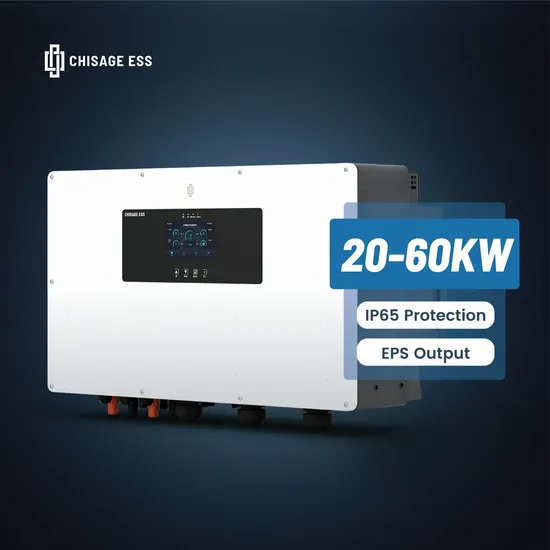

Chisage Merc Series Three Phase 20kw 25kw 30kw 35kw 40kw 50kw 60kw Hybrid Solar Power Inverter Industrial and Commercial Energy Storage Systems

Product Description

Chisage Merc Series Three Phase 20kw 25kw 30kw 35kw 40kw 50kw 60kw Hybrid Solar Power Inverter Industrial and Commercial Energy Storage Systems
Product Features
Specification

Model	Merc-20G1-HE	Merc-25G1-HE	Merc-29.9G1-HE	Merc-30G1-HE	Merc-35G1-HE	Merc-40G1-HE	Merc-50G1-HE	Merc-60G1-HE
Battery Input
Battery Type	Lead-acid or Li-ion
Battery Voltage Range (V)	160~800
Max. Charging/Discharging Current (A)	50		60+60
Max. Charging/Discharging Power (kW)	22	27.5	29.9	33	38.5	44	55	62.5
Charging Curve	3 Stages/Equalization
Number of Battery input	1		2
Charging Strategy for Li-ion Battery	Self-Adaption to BMS
PV String Input
Max. DC Input Power (kW)	30	37.5	44.85	45	52.5	60	70	78
PV Input Voltage (V)	800(160~1000)
MPPT Range (V)	200~850
Start-up Voltage (V)	160
PV Input Current (A)	36+36	36+36+36			36+36+36+36		36+36+36+36+36
Max. PV Isc (A)	55+55	55+55+55			55+55+55+55		55+55+55+55+55
No. of MPPT Trackers	2	3			4		5
No. of Strings per MPPT Trackers	2+2	2+2+2			2+2+2+2		2+2+2+2+2
AC Output
Rated AC Output and UPS Power (kW)	20	25	29.9	30	35	40	50	60
Max. AC Output Power (kW)	22	27.5	29.9	33	38.5	44	55	66
Peak Power(off grid) (kW)	1.5 times of rated power, 10s
AC Output Rated Current (A)	30.3/29.0	37.9/36.2	45.4/43.4	45.5/43.5	53.1/50.8	60.7/50.8	75.8/72.5	90.9/87.0
Max. AC Current (A)	33.3/31.9	41.7/39.8	45.4/43.4	50/47.9	58.4/55.8	66.7/63.6	83.4/79.8	100/95.8
Max. Continuous AC Passthrough (A)	100		200
Output Frequency and Voltage (V)	50/60Hz, 230/400Vac, 220/380
Grid Type	Three phase
Current Harmonic Distortion	THD<3%
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	>99%
Protection
Integrated	PV Input Lightning Protection, Anti-Islanding Protection,PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV ARC Fault Detection	Optional
Output Over Voltage Protection	DC Type II/ AC Type III
Certifications and Standards
Grid Regulation	CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11
Safety Regulation	IEC/ED 62109-1 IEC/EN 62109-2
EMC	IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (ºC)	-45~60, >45 Derating
Cooling	Smart Cooling
Noise (dB)	≤65
Communication with BMS	CAN, RS485
Weight (kg)	85
Dimensions (mm)	550W×890H×300D
Protection Degree	IP65
Installation Style	Wall-mounted

Why Choose Us Support storing energy from diesel generator. ARC fault detection optional.
FAQ
·Q1: Are you a factory or trading company?
We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team.
Chisage ESS prioritizes innovation and reliability, committed to delivering top-tier solutions to our customers.
·Q2: What is the MOQ?
The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.
· Q3: Do you accept custom products?
Yes, OEM and ODM is supported.we have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc.
·Q4: What is your after-sales service?
a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support.
·Q5: What's the payment term?
We support a variety of payment methods, such as T/T, L/C, Ali Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

---
