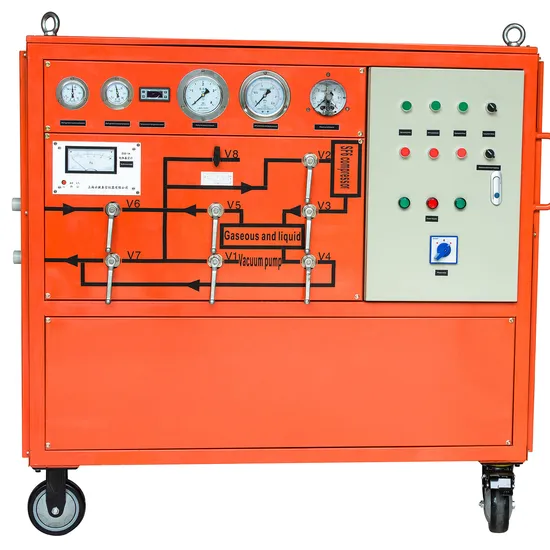

Efficient Sf6 Gas Recovery System Tester with Advanced Filtration New Technology

Product Description

Product Description Introduction This device is applied to the extraction, filling, backfilling, purification and recovery of sulfur hexafluoride gas in SF6 electrical equipment. The built-in filtration and adsorption system can absorb impurities, water, decomposition products and oil content in SF6 gas. The integrated design and small size are easy to move and use. The efficient maintenance - free filtration system greatly guarantees the quality of SF6 gas recovery. SF6 gas should be recycled when the SF6 electrical equipment is applied, therefore, SF6 gas recovery equipment is a special designed to recover and fill SF6 gas when making and maintaining sf6 electrical equipment. SF6 gas recovery device is suitable for the extraction, filling, backfilling, purification and recovery of sulfur hexafluoride gas in sf6 electrical equipment. The recycled SF6 gas can be directly stored into the container in a liquid form, and can recover residual pressure in GIS to 53Kpa (absolute pressure), small volume, easy to move, fast vacuum extraction speed, the recovered SF6 gas can be dried and filtered. It can also be backfilled with SF6 gas to SF6 electrical equipment. Features 1. With internal phase sequence protector, at any time can be eliminated the worry of inversion of the host due to phase sequence errors.
2. All electrical systems are used with quality brands.
3. High quality casters will greatly protect the floor paint and reduce the amount of labor required to drive.
4. The whole machine is air-cooled, without external water source.
5. The internal temperature protection system works well even at -20 degrees Celsius
6. The internal drying and heating system can ensure that the desiccant can be heated and regenerated by the equipment after saturation, so there is no need to replace the desiccant Technology Parameters

Product Name	HYLH-V SF6 Filling equipment
recycle	Recovery initial pressure≤0.8MPa
	Final recovery pressure≤50KPa
	Recovery time:for initial pressure 0.8MPa of 1 m 3 SF6 gas capacity,recovery to final pressure 50KPa, Recovery time is less than 2.5 hours
Gas filling	for initial pressure 133Pa of 1 m 3 SF6 gas capacity filled to 0.8MPa, Inflation time is less than 0.8 hour
vacuumize	The ultimate vacuum degree of the device is less than or equal to 10 Pa, for initial pressure 0.1MPa of 1 m 3 SF6 gas is evacuated to 133Pa . Required time less than 1.0 hour
storage	Storage capacity 0.05m
	Nominal liquid storage 50kg
	Maximum storage pressure 3.8 MPa
purification	For water content under 1000PPM(volume ratio)of SF6 gas, after one time recovery and purification of the device:water less than 60PPM(weight ratio), oil less than10PPM(weight ratio)
Leakage rate per year	Leakage rate per year
Noise	≤75dB(A)SPL
temperature	-10ºC- 40ºC
Power supply	Ac three phase five wire system 50Hz 400V±10%
Power	≤5KW
Weight	545 kg
dimension	1450×810×1200mm

Note: 1mA-5mA, ±3°. Products Show Our Company About HUAYI Wuhan HUAYI Electric was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time. Our products are involved in AC/DC Hipot tester, series resonant test system, transformer tester, relay tester, circuit breaker/switch tester, oil/SF6 tester, cable testerand other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical. Production Line We are professional manufacturer in China, have own production line and R&D team, providing best price and quality. Filed Test&Service Packing & Delivery Our Certifications FAQ 1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.

---
