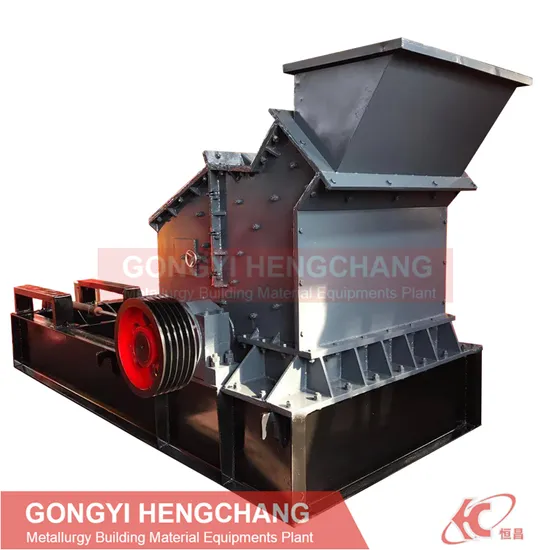

Impact Fine Crusher for Quarry Sand Stone

Product Description

Introduction of impact fine crusher
PCX series high-efficient impact fine crusher is also known as the third generation of fine crushing machine, which have reached the leading level by its performance. Currently it is the most efficient and reliable stone crushing machine, especially for the medium and fine crushing of abrasives, refractoriees, cement, quartz sand, steel sand, slag powder, cooper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and other hard, brittle materials. It is a type o f highly efficient, energy-saving stone crushing and the sand making equipment, which can save 50% energy compared to the traditional crushing machines.
Working Principle of Stone breaking high-efficient impact fine crusher:
When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
Features of impact fine crusher
1. Original creation: Special structure and excellent performance.
2. Higher efficiency
3. Lower consumption
4. High performance price ration
5. Simplifying corollary equipment
Application
It is used in each king of medium degree of hardness solid material, in cement industry, limestone in broken bits, paste, chamote, and so on mix material.
Technical Data

Type	PCX0804	PCX0808	PCX1010	PCX1212	PCX1414	PCX1616	PCX1818
Rotor size(mm)	400x185	550x330	1000x350	1200x450	1500x500	1600x550	1800x800
max.feed size(mm)	≤120	≤180	≤180	≤180	≤190	≤190	≤190
material-out size(mm)	≤5	≤5	≤5	≤5	≤5	≤5	≤5
discharge gap adjustment width	5-20	5-20	5-20	5-20	5-20	5-20	5-20
cement clinker(T/H)	20-30	35-45	45-55	100-110	100-150	170-210	250-270
limestone(T/H)	30-45	60-65	60-75	90-100	100-150	190-250	280-310
glass sand(T/H)	35-45	55-65	65-75	90-120	120-150	190-250	280-310
Power(kw)	30-37	37-55	55-75	110-132	132-180	180-260	240-320
Weight(kg)	3800	4900	8800	13500	18000	24800	28000

---
