AATCC 127 Hydrostatic Head Pressure Tester up to 300kPa

Product Description

Product Description

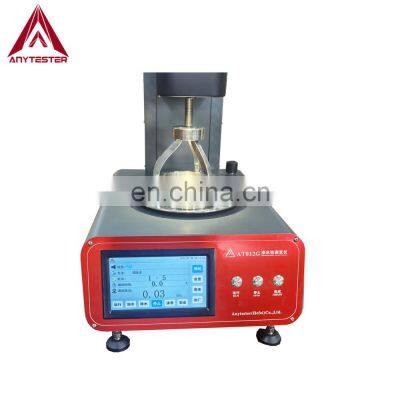

Product DescriptionAT012G Series Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.SpecificationModelAT012G-5AT012G-10AT012G-30Test ring diameter113mmTest area100cm2Measuring range0 ~ 50kPa (30mH2O)0 ~ 100kPa (10mH2O)0 ~ 300kPa (5mH2O)Resolution0.01kPaMeasuring accuracy≤±0.5% F•SWater pressure rising rate0.5～50kPa/min（50～5000mmH2O/min）, digital settingTiming0～9999999.9Timing accuracy±0.1STest unitkPa, mmH2O, mmHg, mBar selectableWater tank capacity1500mlPower supplyAC220V±10%, 50HzPower250wDimensions380×480×460mmWeight25kgOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us

---
