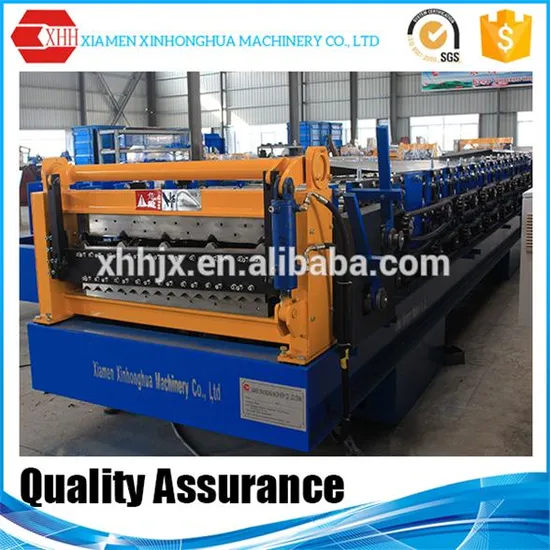

Double Layer Corrugated Steel Sheets and Tiles Roll Making Machine

US$12,000.00-18,000.00 1 Set (MOQ)

Basic Info.

Model NO.
YX25-840
Tile Type
Colored Steel
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Hydraulic Pressure
Productivity
20-25m/Min
Voltage
380V/50Hz/3pH
Volume
6800*2000*1300mm
Weight
6500kgs
Hydraulic Power
1.5kw
Forming Steps
14steps
Material Width
1000mm
Effective Width
840mm, 900mm
Material Thickness
0.3-0.6mm
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Standard Package for Export
Specification
8000*2000*1300mm
Trademark
XHH
Origin
Fujian China(Mainland)
Production Capacity
20sets/Moths

Product Description


Double layer roof roll forming machine & metal roofing roll forming machine 1. Specifications of double layer roofing machine
1).Main Techincal Data:
1. Model Number YX25-840
 YX15-900
2. Size 6800*2000*1300mm
 6800*2000*1300mm
3. Weight 6500KGS 6500KGS
4. Motor Power 5.5KW 5.5KW
5. Hydraulic Power 1.5KW 1.5KW
6. Voltage 380V/50HZ/3PH 220V/60HZ/3PH
7. Forming Steps 14 steps
8steps
8. Processing Speed 20-25m/min 20-25m/min
9. Thickness 0.3-0.6mm 0.3-0.6mm
10. Feeding Material Width 1000mm 1000mm
11. Effective Width 840mm
 900mm
12. Height of Roofing 24mm 24mm

2). Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.
