Supply Diecast RC Small Mini Farm Excavator 32ton New Zg330 with Factory Direct Sale Price

Product Description

Product Description

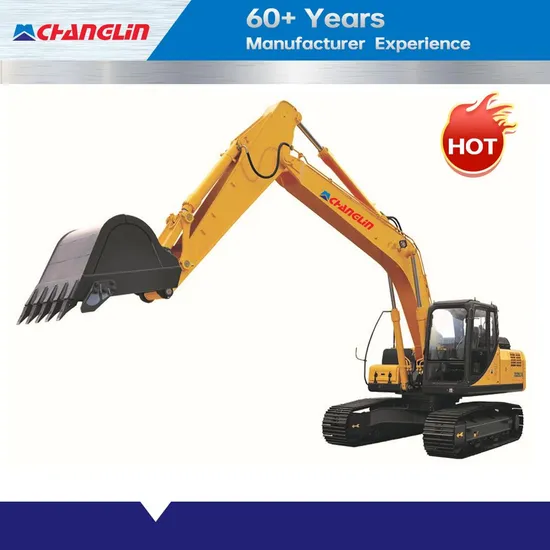

CHANGLIN ZG330 Equipped with Cummins engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts. Based on the above advanced technology, CHANGLIN ZG330 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•Cummins new generation high-power engine with strong power, low fuel consumption and high reliability
•New hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
•Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases; large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect
•Aiming at the extremely harsh mining operation conditions, the heavy-duty reinforced boom, the mine-specific short stick and the large-capacity rock bucket are standard, and the extended and widened heavy-duty chassis is standard.
•Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions.
Product Parameters

	ITEM
Dimensions	Operating weight	Kg	31380
	Rated bucket capacity	m3	1.6
	Overall length	mm	10686
	Overall width(600mm track shoe)	mm	3280
	Overall height	mm	3546
	Trunable width	mm	3060
	Cabin height	mm	3145
	Groundclearance of counterweight	mm	1193
	Engine cover height	mm	2563
	Min. ground clearance	mm	471
	Tail length	mm	3205
	Turning radius of turnable	mm	3250
	Wheel base of track shoe	mm	4030
	Chassis length	mm	4950
	Chassis width	mm	3280
	Track shoe gauge	mm	2680
	Standard track shoe width	mm	600
Performance	Max. traction	KN	266
	Travelling speed (H/L)	Km/hr	4.8/3.0
	Swing speed	rpm	10
	Gradeability	Degree(%)	35(70%)
	Ground pressure	Kgf/cm2	0.594
Working Range	Maximum digging radius	mm	10233
	Ground maximum digging radius	mm	10028
	Maximum digging depth	mm	6536
	Ground maximum digging depth	mm	6331
	Maximum vertical digging depth	mm	4758
	Maximum digging height	mm	9617
	Maximum dumping height	mm	6666
	Min. front turning radius	mm	4256
	Bucket digging force	kN	225
	Stick digging force	kN	182
Engine	Model		Cummins 6LCTAA8.9-C325
	Type		6-cylinder in-line, four-stroke turbocharger
	Emission		Tier II
	Displacement	L	8.9
	Rated power		241KW(325PS)@2000rpm
	Max. torque	N.m	1400N.m@1400rpm

Company Profile
Our Advantages
After Sales Service
Packaging & Shipping

FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers with KOMATSU and HYUNDAI in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,

---
