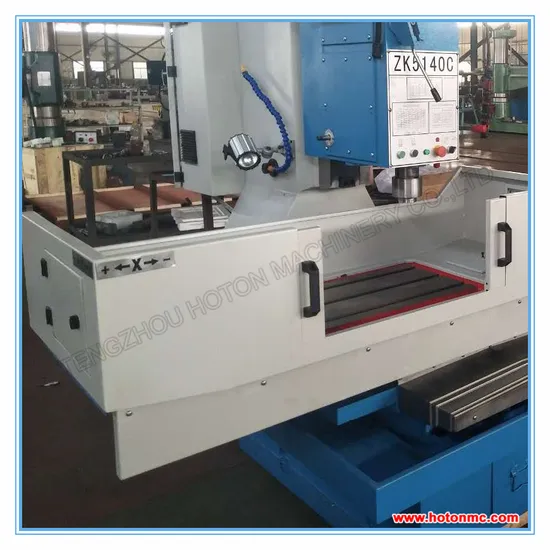

CNC Drilling Machine CNC Vertical Drilling Machine ZK5150 ZK5140

Product Description

CNC Vertical Drilling Machine ZK51 series Machine Features:
ZK51 series CNC vertical drilling machine is a general-purpose machine tool. In addition to drilling, this machine can also perform reaming, countersinking, reaming, tapping, etc. Its function will greatly reduce the processing programming time. The processing programs of various workpieces can be stored in the control system in advance, and can be called up at any time during processing. The operation is simple and easy to grasp.
In the non-cutting state, the spindle idle stroke feed rate has reached 2500mm / min, which shortens the dry run time and improves production efficiency.
The machine has a beautiful appearance, reasonable structure, simple and compact structure, high rigidity, superior performance, and convenient maintenance and repair.
This equipment is equipped with KND-1000M-C numerical control system and ST series servo motor: 130ST-M06025 as standard.

Standard Accessories:

Linear guide and square guide slider

Ball screw

CNC system(K1000MC)

Absolute value servo motor and driver

Mechanical spindle

Other main electrical components

Remote control box

Positive displacement automatic lubrication system

Product main technical Specifications:

Specification	ZK5150	ZK5140
Table size	1000*545	1000*545
area of worktable	850*400	850*400
max drilling dia	φ50	φ40
T-slot width*quantity	18*3	18*3
Spindle hole taper	Morse5#	Morse4#
Spindle speeds	31.5-1400/12	31.5-1400/12
Power of spindle motor	3	3
Spindle box travel	360	360
Travel (X Y Z)	850*400*240	850*400*240
Distance from spindle nose to worktable	65-665	100-700
Distance from spindle center line to column	335mm	335mm
Rapid travel rate X/Y/Z	15/15/1.1	15/15/1.1
CNC system	KND or GSK	KND
Max torque of spindle	350	350
Max feed resistance	12000	10000
Positioning accuracy	±0.025	±0.025
Repeatabiluy accuracy	±0.015	±0.015

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty mod els by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
