Basic Info.
Model NO.
800wog 1-1/2 Vertical Check Valve
Pressure
Ordinary Pressure
Function
Ddcv Double Lobe, Nrvr Silence, Nrvz Silence, Nrvg Silence
Sealing Form
Bellows Globe Valve
Flow Direction
Unidirection
Application
Industrial Usage, Water Industrial Usage, Household Usage
Transport Package
Small Box-Cartons-Plywood Case
Specification
CE and ISO proved
Production Capacity
5000/Month
Product Description

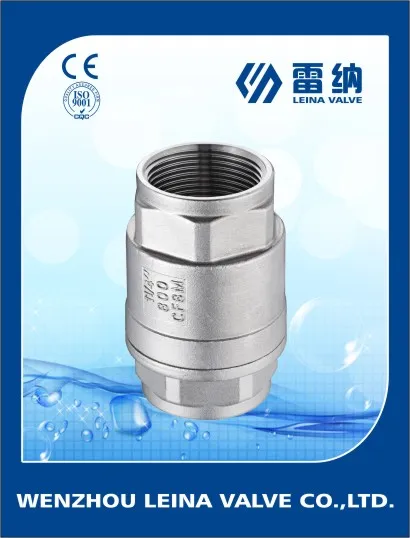

Vertical Check Valve 800WOG
Features
Various Thread Standards Available
Suitable for installation in horizontal and vertical
Using dewaxing precision casting
Product standard
Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1, BS21, DIN 2999/259, ISO 228/1, JIS B 0203, ISO 7/1
Inspection & Testing: MSS SP-110, EN 1226
A Company You Can Trust:
Located in Wenzhou of China, WENZHOU LEINA VALVE CO.,LTD. a professional
manufacturer of valves and pipe fittings. We have many years of experience in valve pipe and have a
good reputation in this field. Our products have won praise from customers worldwide.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each
product can meet quality requirements of customers. Besides, all of our products have been strictly
inspected before shipment.
Your Success, Our Glory:
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-
win situation and sincerely welcome you to join us.
| No. | Parts name | Material |
| ANSI/JIS/DIN | ANSI/JIS/DIN |
| 1 | Body | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 |
| 2 | Spring | SUS304 |
| 3 | Disc | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 |
| 4 | Ball seat | PTFE/VITON |
| 5 | Cap gasket | PTFE/RPTFE |
| 6 | Cap | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 |
| Size | d | L | D |
| 1/4" | 10 | 50 | 26 |
| 3/8" | 13 | 54 | 30 |
| 1/2" | 15 | 57 | 34 |
| 3/4" | 20 | 64 | 42 |
| 1" | 25 | 80 | 49 |
| 1-1/4" | 32 | 82 | 60 |
| 1-1/2" | 40 | 93 | 71 |
| 2" | 50 | 100 | 87 |
| 2-1/2" | 65 | 120 | 110 |
| 3" | 76 | 140 | 125 |
| 4" | 94 | 158 | 155 |
>>
