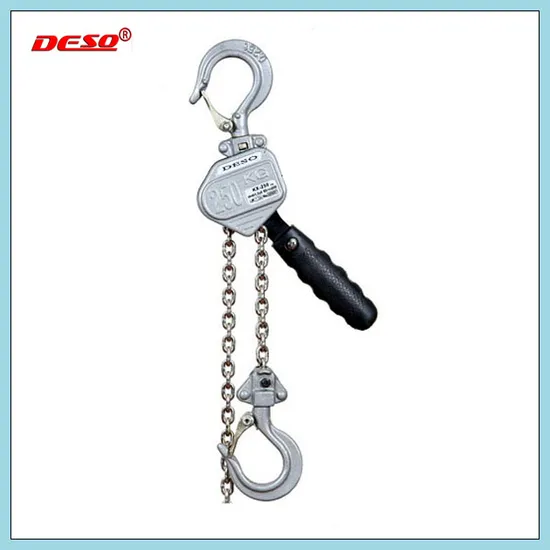

Aluminum Hand Lever Alloy Chain Block / Hoist

Product Description

Aluminum Lever Block / Hoist

Rolled-edge hand wheel cover provides smooth operation of the hand chain when pulled sideways.
Strong and least-corrosive electrostatic powder painting.
Wet friction discs with longer lift span.
Unique chain guide.
Wider opening hooks of easier handling shape.
Tough froming: The tough gear casing, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.
Standard of load chain: EN818-7.

Capacity (t)		0.75	1	1.5	2	3	6	9
Lift (m)		1.5	1.5	1.5	1.5	1.5	1.5	1.5
Test load (t)		1.1	1.5	2.25	3	3.75	7.5	11.25
Pull to lift full load (N)		145	150	200	200	280	310	320
Number of load chain		1	1	1	1	1	2	3
Load chain dia (mm)		6	6	7.1	8	10	10	10
Dimensions (mm)	A	155	155	165	165	185	195	195
	B	60	60	65	65	85	85	85
	C	135	135	145	145	195	250	335
	D	40	40	46	46	50	64	85
	K	24	24	31	31	34	43	55
	H	300	300	365	365	440	575	700
	L	255	255	365	365	365	365	365
Net weight (kg)		7	7	10	12	18	28.5	45
Weight of extra chain each metre (kg)		0.8	0.8	1.1	1.4	2.2	4.4	6.6

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!

---
