Plastic Injection Molding Machine Hxm218 Produce Egg Tray/ Automatic Injection Machine

Product Description

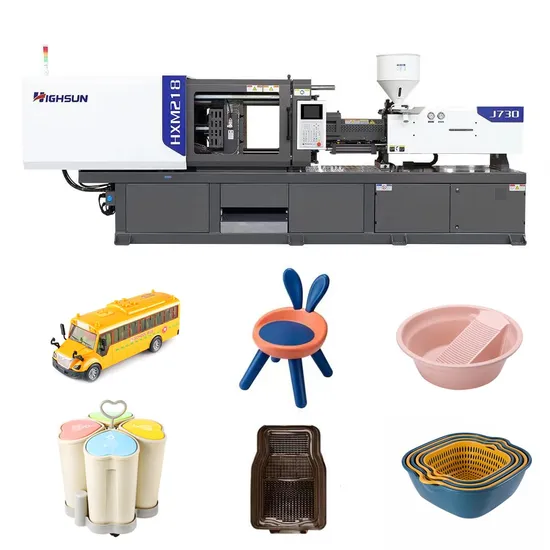

HXM218 injection molding machine

MODEL:HXM218
TECHNICAL PARAME TER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	45	50	55
	SCREW L/D RATIO	L/D	22.2	20	18.2
	INJECTION CAPACITY IN THEORY	cm3	349	431	522
	INJECTION WEIGHT(PS)	g	324	400	485
		oz	11.4	14.1	17.1
	INJECTION PRESSURE	MPa	210	170	140
	INJECTION RATE	g/s	128	158	192
	PLASTICIZING CAPACITY	g/s	18	25	32
	SCREW SPEED	rpm	200
CLAMPING UNIT	CLAMPING FORCE	KN	2180
	MOVING MOULD-PLATE STROKE	mm	520
	MAX. MOULD HEIGHT	mm	580
	MIN. MOULD HEIGHT	mm	200
	SPACE BETWEEN TIE-BARS (W×H)	mm	520x520
	HYDRAULIC EJECTOR FORCE	mm	80
	HYDRAULIC EJECTOR STROKE	KN	150
	EJECTOR NUMBER	n	9
OTHERS	PUMP PRESSURE	MPa	16
	MOTOR /DRIVING POWER	KW	18.5/23
	HEATING CAPACITY	KW	13.55
	MACHINE DIMENSION (L×W×H)	m	5.745x1.34x2.125
	MACHINE WEIGHT	t	6.6
	OIL TANK CAPACITY	L	281

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
Factory
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.

---
