Zinc Coated Gi Fitting Tee Elbow Union Plug Cap Structural Pipe Fittings

Product Description

Malleable Iron Galvanized and Black Fitting Standard: ENGB/T-3287 ; BS EN-10242; KHT300-6 etc.
Material: Malleable Iron
Surface: Galvanized or Natural Black
Inner Surface: With or Without PVC Coated
Bushing

SIZE	In	3/8*1/4	1/2*1/4	1/2*3/8	3/4*3/8	3/4*1/2	1*1/2
	mm	10x8	18x8	15x10	20x10	20x15
L		18.5	22.5	22.5	24.5	24.5	28
H		6	6	6	6	6	6
S		18.4	22	22	29.6	29.6	37.4

Union

SIZE	In	1/2	3/4	1	1 1/4	1 1/2	2
	mm	15	20	25	32	40	50
L		46	50	56	63	68	76
SIZE	In	2 1/2	3	4
	mm	65	80	100
L		83	93	113.5

Straight Tee

SIZE	In	1/4	3/8	1/2	3/4	1	1 1/4
	mm	8	10	15	20	25	32
A		20	24	27	32	37	44.5
SIZE	In	1 1/2	2	2 1/2	3	4	6
	mm	40	50	65	80	100	150
A		48.5	57	68.5	77.5	96.5	129

Coupling

SIZE	In	1/4	3/8	1/2	3/4	1	1 1/4
	mm	8	10	15	20	25	32
L		26	29	35	38	44	49
SIZE	In	1 1/2	2	2 1/2	3	4	6
	mm	40	50	65	80	100	150
L		53	63	72	77	91	118

Reducering Socket

Size	mm	10x8	15x8	15x10	20x15	25x10	25x15
	In	3/8x1/4	1/2x1/4	1/2x3/8	3/4x1/2	1x3/8	1x1/2
A		29	35	36	38	44	44
Size	mm	32x15	32x20	32x25	40x15	40x20	40x25
	In	1¼x1/2	1¼x3/4	1¼ x1	1½x1/2	1 ½x 3/ 4	1½ x1
A		49	49	49	53	53	53
Size	mm	40x32	50x15	50x20	50x25	50x32	50x40
	In	1½x1¼	2 x1/2	2x3/4	2x1	2x1¼	2x1½
A		53	63	63	63	63	63
Size	mm	65x15	65 x 20	65x25	65x32	65x40	65x50
	In	2½x1/2	2 ½x3/4	2 1/2x2	2½ x1¼	2 ½x1½	2 ½ x2
A		72	72	72	72	72	72
Size	mm	80x15	80x 20	80x25	80x32	80x40	80x50
	In	3 x 1/2	3x3/4	3x1	3x1¼	3x1½	3x2
A		71	71	71	71	71	71
Size	mm	80x65	100 x15	100x20	100 x 25	100x32	100x40
	In	3x2½	4x1/2	4x3/4	4x1	4x1¼	4x 1½
A		71	84	84	84	84	84
Size	mm	100x50	100x 65	100x80	25x20
	In	4x2	4x2½	4x3	1x3/4
A		84	84	84	44

Octagonal Cap

Size	In	3/8	1/2	3/4	1	1 1/4	1 1/2
	mm	10	15	20	25	32	40
A		17	19	22	24	27	28
S		20.6	24.6	30.4	37.2	47	53
Size	In	2
	mm	50
A		32
S		65

Plain Plug

Size	In	1/4	3/8	1/2	3/4	1	1¼
	mm	8	10	15	20	25	32
L		15.5	17	22.5	24	27	30
B		1 0	10	13	14	16 5	20
S		6	7	10	12	15	18
Size	In	1½	2	2½	3	4
	mm	40	50	65	80	100
L		31	36	40.5	45.5	51
B		21	25	26 5	29.5
s		22	26	30	34	44

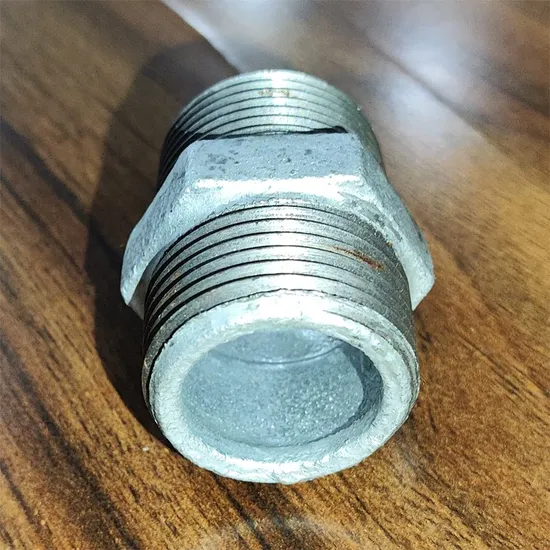

Barrel Nipple

Size	In	1/4	3/8	1/2	3/4	1	1 1/4
	mm	8	10	15	20	25	32
L		36	36	44	47	53	56
S		16.7	19.2	23.6	29.2	36	45
Size	In	1 1/2	2	2 1/2	3	4
	mm	40	50	65	80	100
L		58	68	73	81	95
S		63	63	79.4	91.6	117

90 Elbow

Size	I n	1/4	3/8	1/2	3/4	1	1¼
	mm	8	10	15	20	25	32
A		20	24	27	32	37	44 .5
Size	In	1½	2	2Y.	3	4	6
	mm	40	50	65	80	10 0	150
A		48 .5	57	68 .5	77.5	96.5	129

45 Elbow

Size	In	1/2	3/4	1	1¼	1½	2
	mm	15	20	25	32	40	50
A		22	25	28	33	36	43
Size	In	2½	3	4	6
	mm	65	80	100	150
A		48 .5	53 . 5	64 . 5	129

Reducing Elbow

Size	In	1/4	3/8	1/2	3/4	1	1¼
	mm	8	10	15	20	25	32
A		20	25	28	33	38	45
B		28	33	38	44	52	60
Size	In	1½	2	2½	3	4
	mm	40	50	65	80	100
A		50	58	69	77 .5	96.5
B		65	74	90	100	120

Reducing Tee

Size	In	1.25x1/2x1	1 1/4x3/4x1	1 1/4x1x1	11/2x1/2x1 1/4	1 1/2x3/4x1 1/4	1 1/2x1x1
	mm	32x15x25	32x20x25	32x25x25	40x15x32	40x20x32	40x25x25
A		34	36	39	35	37	40
B		37	40	40	41	43	44
C		31	34	36	34	36	36
Size	In	1 1/2x1x1 1/4	1 1/2x1 1/4x1	1 1/2x1 1/4x1 1/4	2x1/2x1 1/2	2x3/4x1 1/2	2x1x1 14
	mm	40x25x32	40x32x25	40x32x32	50x15x40	50x20x40	50x25x32
A		41	45	45	37	40	43
B		45	47	47	47	49	51
C		40	41	44.5	35	37	40
Size	In	2x1x1 1/2	2x1 1/4x1 1/4	2x1 1/4x1 1/2	2x1/2x1	2x1 1/2x1 1/2	2 1/2x3/4x2
	mm	50x25x40	50x32x32	50x32x40	50x40x25	50x40/40	65x20/50
A		42	47	47	51	51	43.5
B		49	53	53	54	54	57
C		40	44.5	45	45	48.5	40
Size	In	2 1/2x1x2	2x1 1/4x1 1/2	2 1/2x1 1/4x2	2 1/2x1 1/2x2	2 1/2x2x2	3x1x2 1/2
	mm	65x25x50	65x32x40	65x32x50	65x40x50	65x50x50	80x25x65
A		45	51.5	51.5	54.5	59.5	49.5
B		58	61	61	61	64	67
C		42	45	47	51	57	47.5
Size	In	3x1 1/4x2 1/2	3x1 1/2x2 1/2	3x2x2 1/2	3x2 1/2x2 1/2
	mm	80x32x65	80x40x65	80x50/65	80x40 x65
A		54.5	57.5	61.5	61.5
B		69	71	71	71
C		51.5	54.5	59.5	59.5

Company's profile Tianjin Youfa Steel Pipe Group Co. was founded on July 1st,2000,with the headquarters located at the largest steel pipe production base in China-Daqiuzhuang Village,Tianjin City;
- Produced over 15million tons of various steel pipes in 2017;
- the largest welded steel pipe manufacturer in the world, Production and Sales No.1 for 13 consecutive years in China. Products exported to over 86 countries and regions,the Top 500 Enterprises in China;
- has formed four production bases in Tianjin City, Tangshan City, Handan City and Shanxi Province;
- Tianjin Youfa International Trade Co., is a subsidiary of YOUFA Steel Pipe Group,located in Tianjin City.Company has 55 professional talents. In order to provide personalized service for foreign businessmen, we have opened a processing factory of 10,000 square meters;
- Products cover ERW Steel Pipe, Hot Dipped Galvanized Steel Pipe, Square and Rectangular Steel Pipe,Steel Pipe of Lining Plastic,Plastic-coated Steel Pipe, Spiral Steel Pipe, Highway Materials.

---
