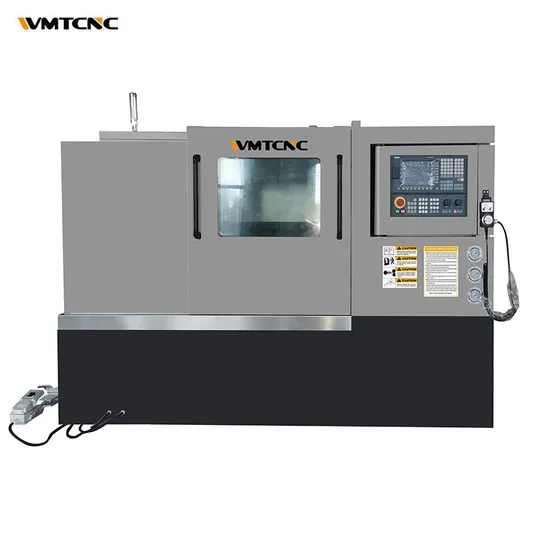

slant bed CNC lathe CK36L cnc lathe machine for metalworking

Product Description

Product Description
Main Features:
1. Mini lathe cnc machine for slant bed 45 degree.
2. X/Z axis for Taiwan precision ballscrew and Taiwan linear guideway.
3. GSK,Siemens and Fanuc CNC controller for choices.
4. Artistic apperance with high precision.

Model	CK30L	CK32L	CK36L
Max. swing oner bed	φ300mm	φ320mm	φ360mm
Max. swing over carriage	φ140mm	φ180mm	φ210mm
Max. cutting length	350mm	450mm	500/750mm
Rail width	260mm	284mm	284mm
Spindle nose	A2-4	A2-5	A2-5,A2-6
Spindle bore	φ46mm	φ56mm	φ56mm,(62mm)
Taper of spindle bore	1:20	1:20	1:20
Chuck	5"	6"	6" , ( 8")
Range of spindle speed	150-6000rpm	150-4200rpm	150-4200rpm
X axis travel	150mm	190mm	210mm
Z axis travel	350mm	450/650mm	500/750mm
X/Z rapid speed	20/20m/min	20/20m/min	20/20m/min
Hydraulic turret	8	8	8
Max. section of tool	16*16mm	20*20mm	20*20mm
Stroke of tailstock sleeve	60mm	80mm	80mm
Diameter/ Hole of tailstock sleeve	φ40mm/MT3	φ60mm/MT4	φ60mm/MT4
Main motor power	4KW	4KW/5.5KW	5.5KW/7.5KW
Coolant pump power	370W	370W	370W
Overall dimensions (L*W*H)	1800*1250*1550mm	2300*1550*1750mm	2630/2910*1550*1750mm
Packing size (L*W*H)	2000*1400*1750mm	2500*1750*2000mm	2830/3130*1750*2150mm
N.W/G.W	1750KG/2000KG	2200KG/2600KG	2700KG/3000KG

Detailed Photos
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
