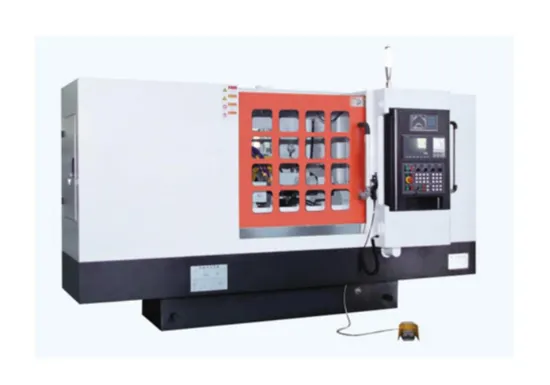

CNC Cylindrical Grinder Machine Mak1320h Make1320h

Product Description

CNC CYLINDRICAL GRINDER MACHINE MAK1320H/MAKE1320H Main functions and features:
1.The CNC cylindrical grinder is suitable for batch productionofcylindrical parts grinding with high performance-to-price ratio.
2.The electrical system is controlled by KND 1000Ti, and the executive system is driven by the CNC servo driver and servomotor. Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by theservo motors via the ball screw .transmission. With the touch screen and human-machine interface, the machine is easy tooperate. With other systems and configured online automatic measuring instrument can also be based on user needs.
3.The machine is simple and easy to operate. After simple trainingit can be operated easily.By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the functionof worktable trip-stop, the machine can grind more than onejournals of one workpiece automaticaThe machine is simple andeasy to operate.After simple training, it can be operated easily. Bysetting the parameter of longitudinal grinding or plunge grindingvia the touch screen, an auto-grinding for the different workpieceis realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automaticallyThe process parameter of more than one journals can be setdiscretionary for long grinding of plunge grinding.
4.With the function of whee ldressing and compensation automatically.
5.Wheelhead spindle is supported by three bushing hydro.dynamic bearing,and high precision hydro dynamic-staticbearing is also available for the user.
6.Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of almoving parts.Tailstock has two ways:hydraulic and manual.
Technical Parameters:

Model No.	MAK1320Hx500 MAKE1320Hx500	MAK1320Hx750 MAKE1320Hx750
Item No.
Specifications
Dia to be grinded	Φ8-Φ200mm	Φ8-Φ200mm
Max.length to be grinded	500 mm	750 mm
Center height	135 mm	135 mm
Distance between centers	500 mm	750 mm
Headstock center	4#	4#
Tailstock center	4#	4#
Max.workpiece weight to be grinded	50 KG	50 KG
Wheel size	Φ500x50xΦ203 mm	Φ500x50xΦ203 mm
Wheel peripheral speed	38 m/s	38 m/s
Wheelspindle rotation speed	1452/1720 r/min	1452/1720 r/min
Min.pulse amount in X-axis	0.001 mm	0.001 mm
Min.pulse amountin Z-axis	0.001 mm	0.001 mm
Total motor power	10.825 kw	10.825 kw
Longitudinal-servo motor	2.6 kw(10Nm)	2.6 kw(10Nm)
Traverse servo motor	2.6 kw(10Nm)	2.6 kw(10Nm)
Roundness	1.5μm	1.5μm
Surface roughness	Ra0.32μm	Ra0.32μm
Dia.uniformity in the longitudinal.Section	5μm	5μm

Main Accessories	Extra Accessories
Wheel periphery dresser	Wheel Balancing stand
Wheel hub	Open-type steady-rest
Balancing arbor	Hybrid wheel spindle
Diameter measuring instrument	Surface measuring instrument
Magnetic separator
Wheel extractor

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
