High-Performance CNC Vertical Lathe for Automotive Industry

US$66,000.00
1-4 Set
US$65,000.00
5+ Set

Basic Info.

Model NO.
CK5250
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Ck5250 CNC Double Column Vertical Lathe
Machine Type
Double Column Vertical Lathe
Max.Cutting Diameter
5000mm
Max.Cutting Height
2000/2500/3150mm
Max.Loading Weight
32/50t
Max.Worktable Torque
100000n.M
Worktable Speed Range
0.5-40rpm
Worktable Step Range
4 Gears Shift Stepless / 2 Gears Shift Stepless
Right Tool Post Cutting Force
35/50kN
Left Tool Post Cutting Force
28/40kN
Tool Post Horizontal Travel
2765mm
Tool Post Vertical Travel
1250/1400/1600mm
Main Motor
AC55/75kw
Tool Post Rapid Speed
2000mm/Min
Crossbeam Speed
380mm/Min
Transport Package
Wooden Cases
Specification
9200*5800*5800mm
Trademark
HAIDI
Origin
China
HS Code
8458911090
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
960.00cm * 610.00cm * 800.00cm
Package Gross Weight
65010.000kg

Product Description

CK5250 China Professional CNC Double Column Vertical Lathe

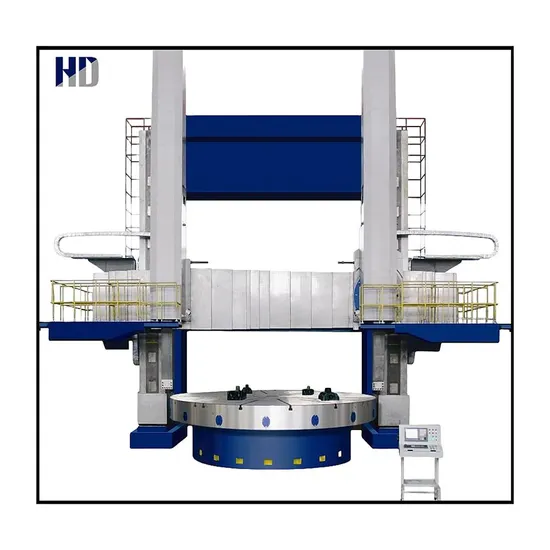

Product Picture
Specification Parameter
Specification Unit CK5225 CK5232 CK5235 CK5240 CK5250 CK5263
Max.Cutting Diameter mm 2500 3200 3500 4000 5000 6300
Max.Cutting Height mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500 2000/2500/3150 3150/4000
Worktable Diameter mm 2250 2830 2830 2830/3200/3600 4000/5000 4500/5000/5700
Max.Loading Weight T 10/16/20 10/16/20 10/16/20 20/32 32/50 60/80
Max.Worktable Torque N. m 63000 63000 63000 63000 100000 100000/150000
Worktable Speed Range rpm 2-63 2-63 2-63 0.5-40 0.5-40 0.5-38
Worktable Step range 4 Gears Shift Stepless / 2 Gears Shift Stepless
Right Tool Post Cutting Force Kn 35 35 35 35 35/50 50/80
Left Tool Post Cutting Force Kn 28 28 28 28 28/40 40/70
Tool Post Horizontal Travel mm 1400 1700 1900 2150 2765 3450
Right Tool Post Feed Range and Steps mm/min 0-500 ( Servo Stepless )
Tool Post Vertical Travel mm 1000/1250/1400 1000/1250 1000/1250 1000/1400 1250/1400/1600 1600/2000
Main Motor kw 55 55 55 55 AC55/75 AC75/90/110
Tool Post Rapid Speed mm/min 2000
Crossbeam Speed mm/min 380
Machining Precision -- IT7
Positioning Precision mm 0.03
Repositioning Accuracy mm 0.015
Machine Weight t 32/34/36 37/39/41 39/41/43 43/45/48 60/65/70 118/127/178
Overall Dimension(L*W*H) mm 5180*4700*4800 6310*4950*6245 6610*5100*6245 6900*5200*6600 9200*5800*7700 11500*7500*9300
