Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Max. Turned Length (mm)
1000 mm
Max. Diameter Swing Over Bed
630mm
Dimension(L*W*H)
1750X1550X3725mm
Machining Capacity
Medium Duty
Metric Thread Grade/Range
24/1-14mm
Warranty of Core Components
1 Year
Key Selling Points
Energy Saving
Net Weight(for 1500mm)
4.3t
Machinery Test Report
Provided
Transport Package
Steel Pallet.
Production Capacity
50 Set/Sets Per Month
Product Description
Product Description
Lathe is a machine tool mainly used for turning the rotating workpiece. In the lathe can also be used to drill, reamer, reamer, tap, die and knurling tools for the corresponding processing.
Feature:
★★★★★★
1.The integral bed ensuring the rigidity of the lathe and the guide-ways are medium-frequency hardened to ensure the long working life.
2.The spindle applies the double chuck structure.
★ Dead Centers, Reduction Sleeve, Maintenance Kit, Foundation Bolts/Nuts, Level Blocks, English Operation Manual.
★4 Jaw Chuck 400mm
★ Taper turning attachment
Specification

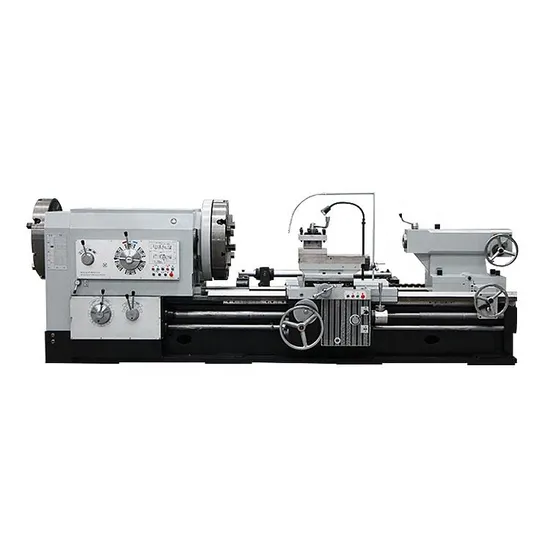

SPECIFICATION OF CONVENTIONAL PIPE THREAD LATHE
|
|
|
|
ITEMS
|
| UNIT
| MODEL Q1313
|
Capacity
| Max. diameter swing over bed
| mm
| Φ630
|
| Max. diameter swing over cross slide
| mm
| Φ350
|
| Distance between centers
| mm
| 1500
|
| Pipe threading range
| mm
| Φ30-127
|
| Width of bed way
| mm
| 490/550
|
| Max. load capacity
| T
| 3
|
Spindle
| Spindle bore
| mm
| Φ130
|
| Spindle speed range
| rpm
| 16-800
|
| Chuck size
| mm
| Φ400
|
| Chuck type
| -
| 3-jaw manual
|
Turret
| Turret type
| -
| Manual 4 position
|
| Tool shank size
| mm
| 32×32
|
Feed
| X axis travel
| mm
| 300
|
| Z axis travel
| mm
| 1300
|
| X axis feed grade/range
| mm/r
| 22/0.02-0.45
|
| Z axis feed grade/range
| mm/r
| 26/0.07-1.33
|
| X axis rapid traverse speed
| mm/min
| 2300
|
| Z axis rapid traverse speed
| mm/min
| 4000
|
| Metric thread grade/range
| mm
| 24/1-14
|
| Inch thread grade/range
| T.P.I.
| 40/28-2
|
Tailstock
| Tailstock quill diameter
| mm
| Φ100
|
| Tailstock quill taper
| -
| MT5
|
| Tailstock quill travel
| mm
| 250
|
Motors
| Main spindle motor
| kW
| 11
|
| Rapid traverse motor
| kW
| 0.3
|
| Coolant pump motor
| kW
| 0.125
|
Dimensions
| Width x Height
| mm
| 1750×1550
|
| Length
| mm
| 3725
|
Weight
| Net weight(for 1500mm)
| T
| 4.3
|
Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.
4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
