68° Automatic Upright Type Water Mist Fire Sprinkler Head for Fire Fighting Equipment

Product Description

Product Description

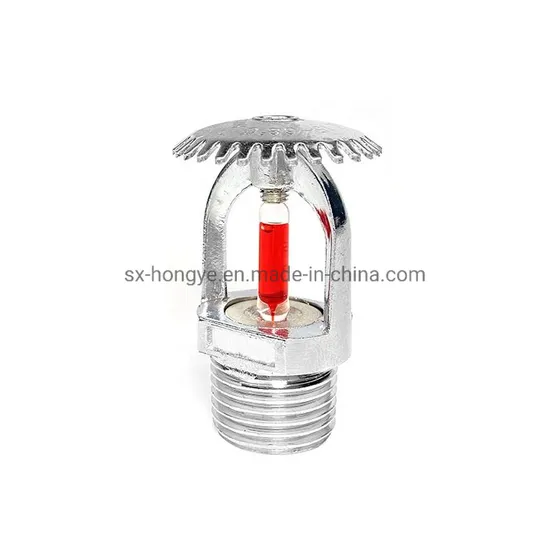

FIRE SPRINKLER HEAD UPRIGHT
Fire sprinkler is a nozzle that use to spray water to the fire.
It is installed at the end of water pipe.
It can sense the heat by a specific glass bulb then open automatically to allow water spray out to extinguish the fire.
Product Feature
1) Sprinkler material:brass
2) Plate material: stainless steel
3) Surface colour: chrome
4) Sensing element: glass bulb
5) Thread:BSP R1/2" DN15
6) Type:Upright
7) Temperature:68ºC
8) Working pressure : 1.6MPa/ 16bar / 235psi
9) Glass bulb: standard respond
10)K factor:5.6gpm/psi½(80 lpm/bar½);
11}Weight: pendent 50.5g
Application
Hotels,hospitals, shopping mall, factory, schools and so on.

Installation and Maintence
During installation, should pay attention not to damage the bulb to avoid affect the thermal performance. In the process of wrench and twist, do not use spanner to wrench the supporting arm to deformation and affect the
sealing performance (note: the bulb temperature can be chosen according to the needs of users)

Product Parameters

Norminal Diameter	Connection Thread	Flow rate	Temperature
DN15	R1/2"	80±4	57/68/79/93/141°
DN20	R3/4"	115±6	57/68/79/93/141°

Upright sprinkler: Used mainly where the water pipeline is exposed. Mounded only in Upright position discharging spray hemispherically.
