Hot Sale China Brand Hi-Target Long Range Zts-421L10, Hts-521L10 Total Station

Product Description

Product Description
Product Parameters

Angle Measurement
Measurement Method:	Absolute Encoding
Minimum Readout:	1″
Accuracy	2"
Distance Measurement (with Reflector)
Single prism (General/Good Atmosphere)	5000m/6000m
Accuracy (Fine/Quick/Tracking)	2mm + 2ppm
Measuring Time (Repeat/Tracking)	0.5s/0.3s
Distance Measurement (Reflectorless)
Range (The target is Kodak white board with reflect rate of 90%)	1000M
Accuracy (It may change according to the different reflector conditions)	3mm+2ppm
Measuring Time	1s
Telescope
Magnification	30X
Field of View	1°30′ (2.7m at 100m)
Minimum Focusing Distance	1.5m
Reticle	Light up
Compensator
System	Dual-axis liquid tilt sensor
Working Range	±3′
Setting Accuracy	1″
Communication
Interface	Standard RS232
Internal Data Memory	Approx. 20,000 Points/Standard USB flash drive
Wireless communication	Bluetooth
Operation
Operation system	English Real-time Operating System
Display	2.8-inch and 240*320 pixels high-brightness color display
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Power Supply
Battery Type	Rechargeable high-energy lithium battery (Type-C for direct charging)
Voltage/Capacity	7.4v, 3000mAh
Operating Time	18-hour (30-second measurement of new battery with 25°C), 36-hour continuous angle measuring
Measuring Times	Approx. 30000 times
Environmental
Operating Temperature	-20ºC ~+50ºC( -4ºF to +122ºF)
Storage Temperature	-40ºC ~+70ºC(-40ºF to +158ºF)
Temperature and Air Pressure Input	Automatic sensor
Dust&Water Proof (IEC60529 Standard)/Humidity	IP55

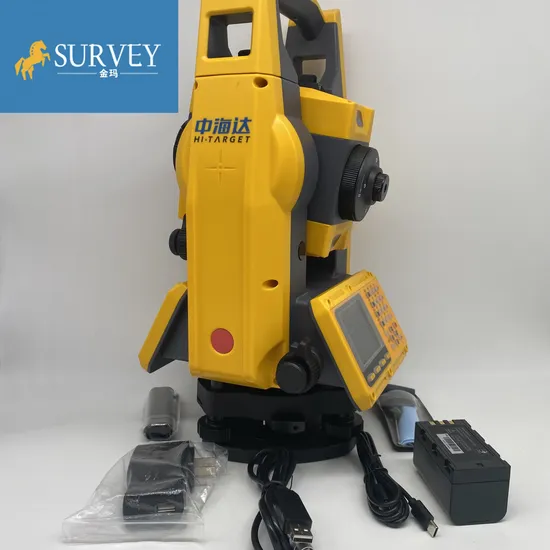

Detailed Photos
Company Profile Our company is to provide professional surveying instruments and surveying service, and with rich experience in export trade, We have many customers abroad.Because of its high cost performance, it is deeply loved by customers all over the world, especially in African countries, Southeast Asian countries, South American countries and Oceanian countries. We have many customers in Tanzania, Uganda, Zambia, Cote d'Ivoire, Cameroon, Zimbabwe, Congo, India, Singapore, Pakistan, Mongolia Brazil, etc.Our company mainly sales of Total station, Auto/digital level, Optical /electronic theodolite, GNSS RTK, Laser distance meter, Handheld GPS, Drone, Surveying accessories, Surveying software, etc. We have good price with Trimble, Hi-target, South, Kolida, Sanding, Ruide, Chc, Stonex, Foif, Tersus, sokkia, spectra, nikon, Topcon, etc. And we keep good cooperation with surveying accessory manufacturer.The Company's employees graduated from engineering, surveying professional institutions of higher learning, with professional knowledge, is a high-quality sales and service team to provide you with excellent quality instrument service and efficient surveying solutions.Our goal: Be a best and professional export supplier of surveying instruments.Packing details
Payment support :
Delivery & Transport


Contact us https://njjmch.en.made-in-china.com/contact-info.html
Customer feedback
FAQ1. how long we guarantee quality?
Our main products like Auto level, Theodolite, Total Station,Gnss rtk have one year warranty, And we sure the products will be free from maintenance within warranty period If it is not man-made damage,and accessories with 6 month warranty
2.what can you buy from us?
Auto/digital level, Theodolite, Total Station,Gnss rtk,Laser level,Laser distance meter, drone ,3D scanner, Echo sounder and surveying accessories like tripods,ranging pole,prism,bipod .etc
3.what repair service can we provide if products got problem?
For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;
For big issues in one year warranty like EDX board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. For big issues out of one year warranty, the customer should be responsible for all the cost.
4,what payment term we support?
TT, Paypal, Western union,L/C,Pay in cash
5, How will we prepare before shipment?
All products will have been strictly quality checked in factory before sending out.Usually, we will send out the products within 3-5 working days after the payment confirmed and the buyer are responsible for the tax and/or duty charged by their country.

---
