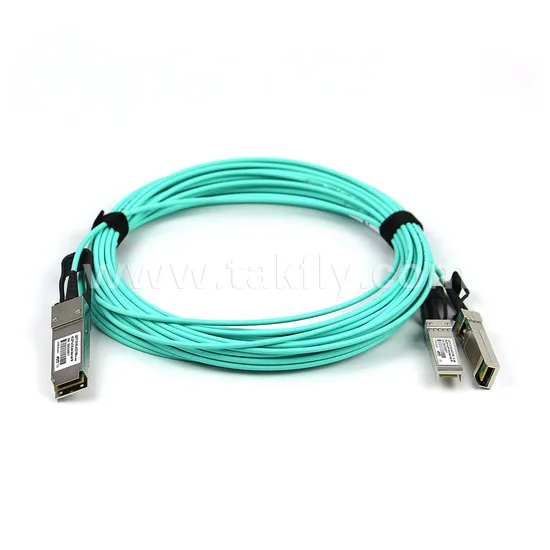

40G QSFP to 10G SFP AOC Active Optical Cable
Introduction:
The TK-2SFP10G-AOC150CM/200CM/250CM is a Two-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 2 x SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 2 x 10G applications.
This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 2 x 10G InfiniBand QDR applications and are backwards compatible to the 4 x 5G IB DDR and 4 x 2.5G IB single IB SDR applications.
This AOC incorporates TAKFLY' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features:
QSFP+ AOC end:
1. Compliant to the 40GBASE-SR4 and XLPPI
2. Specification per IEEE 802.3ba-2010 and supporting
3. 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
4. Compliant to the industry standard SFF-8436
5. Power Level 1: Max Power < 1.5 W
6. Operate at 10.3125 Gbps per channel with 64b/66b
7. Encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 2x SFP+ end:
1. Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
2. Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor "IPF"
3. Maximum power dissipation 0.35W per end.
Active Optical Cable Assembly:
1. 0 to 85 C degree case temperature operating range
2. Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
3. Hot pluggable for ease of servicing and installation
4. Two Wire Serial interface
5. Utilizes optical fiber for high density and thin, lightweight cable management
Application:
1. 40GbE and 10GbE break-out applications for Datacom switch and router connections
2. 40G to 2xlOG density applications for Datacom and Proprietary protocol applications
3. Datacenter
Quality Warranty: 3 years
Active Cable-End Electrical Characteristics:
The following characteristics are defined over the Recommended Operating Conditions
unless otherwise noted. Typical values are for Tc = 40 °C, Vcc = 3.3 V

Parameter	Symbol	Min	Typical	Max	Unit
QSFP+ 40G Active Cable-End Power Consumption				1.5	W
QSFP+ 40G Active Cable-End Power Supply Current				300	mA
SFP+ 10G Active Cable-End Power Consumption				0.35	W
SFP+ 10G Active Cable-End Power Supply Current				100	mA

QSFP+ AOC-end Electrical Characteristics Electrical Specifications:

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	AVin	300		1100	mVp-p
Differential output voltage amplitude	AVout	400		800	mVp-p
Bit Error Rate	BR			E-12
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V
Output Logic Level High	VOH	VCC-0.5		VCC	V
Output Logic Level Low	VOL	0		0.4	V

SFP+ AOC-end Electrical Specifications:

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	AVin	100		1800	mVp-p
Differential output voltage amplitude	AVout	400		800	mVp-p
Bit Error Rate	BR			E-12
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V

Recommended Operating Conditions and Supply Requirements:

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	TOPC	0		85	degC
Power Supply Voltage	VCC	3.13	3.3	3.47	V
Data Rate	DR		10.3	11.3	Gbps
Data Speed Tolerance	ADR	-100		+100	ppm
Link Distance with OM3 fiber	D	0		100	m
Control* Input Voltage High	Vih	2		VCC+0.3	V
Control* Input Voltage Low	Vil	-0.3		0.8	V
I2C Serial Interface frequence	fs			400k	Hz
Power Supply Noise				50	mVpp
Receiver Differential Data Output Load				100	mVpp
