Zl Ceramic Cutter Italy Program Software 5 Axis CNC Bridge Saw Stone Cutting for Marble, Granite, Quartz Kitchen Position by Camera Support Dxf File

Product Description

Product Parameters

Model	4+1 Axis CNC bridge saw	5+1 Axis CNC bridge saw	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Maximum cutting	L3500*W2000*H90	L3500*W2000*H90	mm
Maximum chamfering	L3500*W2000*H50	L3500*W2000*H50	mm
Blade diameter	350-425mm	350-425mm	mm
Main motor power	15	22(permanet magnet motor with frequency)	kw
Router power	5.5	5.5	kw
Control center	industry computer with "Cut Cam" CNC System	industry computer with "Cut Cam" CNC System
Driving motor	Servo motor	Servo motor
Router max speed	24000	24000	RPM
Total power	25	32	kw
Suction cup lifting weight	200	200	kg
Head rotate	0°-360°	0°-360°
Head tilt	0°and 45°	0°-90°
Cylinders	5	5	group
Dimensions	L5750*W3260*H3500	L5750*W3260*H3500	mm
Water consumption	2	2	m³/h
Total weight	5	5	t
Main part delivered size	5750x2200x2500	5750x2200x2500	mm
Machine delivered method	Main part delivered as whole(HQ container)	Main part delivered as whole(HQ container)

Product Description

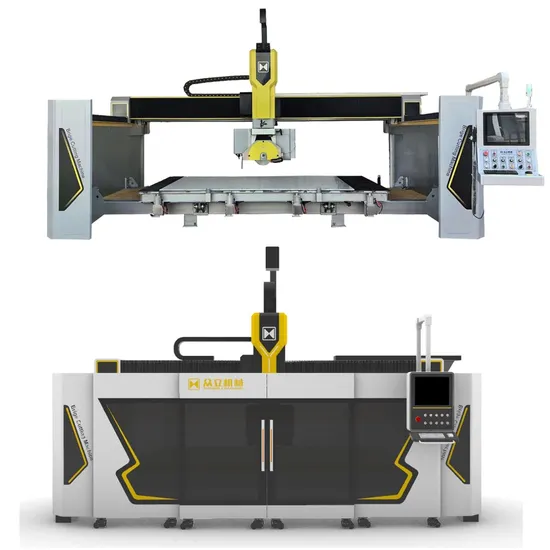

For processing Marble, Granite, Porcelain, Quartz Stone, Sintered Stone Countertops, we provide CNC bridge saws of the ZLBS-425CNC/(4+1) A type and the ZLBS-425CNC/(5+1) A type.
They are precise, effective, and user-friendly machines.Put the stone slab on the worktable, take a photo for it by the Camera of the machine, and then use Computer to place your layout drawing on the stone in the picture, then start, the machine will generate processing steps automatically.Saw blades, Milling cutters, Suction Cups, and Pressure Plate Cylinders will start working. Therefore, the machine is used to help install countertops without any dust.
We also provide OEM/ODM production machine service.

Functions:
* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals...
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
*Vein matching: match vein and seam of your slabs with ease.

Option: (System) 1. "Cut Cam"CNC System 2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber

Product Features
1. Electric spindle with 24000rpm
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Router Power:
(ZLBS-500CNC/5+1A)5.5 kw
(ZLBS-600CNC/5+1A)7.5kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
5. With a Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
6. Suction Cup is equipped
The machine has Suction Cup to move slabs automatically.If the blade-cutting path conflicts, the suction cup can help.
7. Big Cutting Range

(ZLBS-500CNC/5+1A),Max.Cutting: L3500*W2000*T120
(ZLBS-600CNC/5+1A),Max.Cutting: L3700*W2300*T150


8. Touch-Screen Industrial Computer
This Machine has an industrial computer with touch-screen.

9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
Application Pictures
Application Fileds:
* Residential & Commercial Interiors
* Decorative wall panels
* Countertops/ Vanity Top /Kitchen Sink/ Bathrooms
* Worktops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funeral art
* Street furniture
* Ventilated facades


Packaging & Shipping
This model can be loaded into a 40' HIGH-CUBE Container.
Company Profile
Certifications
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.
FAQ Q: Can you make Sample production according to my requirement?
A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.
Q: Where is your factory located ? How can I visit it ?
A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.
Q: What is your MOQ of your machine?
A: Our MOQ is 1 set.
Q: How long is the production time?
A: It generally takes 45 days
Q: This is the first time I buy the machine, is it easy to operate?
A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.

---
