Basic Info.
Material Processed
Ton Bag
Computerized
Computerized
Certification
ISO9001:2008, CE
Application
Ton Bag Recycling Machine
Automatic Grade
Automatic
Production Capacity (Kg/H)
500 - 1000
Voltage
380V,50Hz,3pH(According to Customer)
Raw Material
Waste PE PP Plastic
Final Product
Clean Plastic Flakes
Motor Brand
Seimens Beide
Transport Package
Wooden Case Covered by Plastic Film
Specification
15m*1.8m*2.3m
Trademark
Camel Machinery
Origin
Zhangjiagang Jiangsu China
Production Capacity
100PCS/Year
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 220.00cm
Package Gross Weight
6000.000kg
Product Description

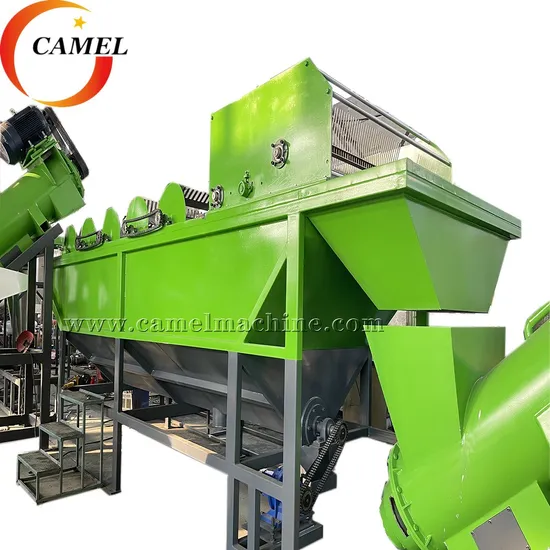

PP Woven Bag Recycling Washing Line
PP Woven Bag Washing Line is a complete recycling line for crushing washing and drying of PP woven bags,PP jumbo bags,PP big bags,PP sacks,PP waste cement bags, etc. Washing and cleaning of PP bag is different from washing of PE film. PP Woven Bags Washing Line is designed with high output, energy saving,stable running features. Product Parameters
Capacity
| 300-2000 kg/h
|
|
Application
| food packaging film, agriculture film, green house using film used in oil field, PP bag, PE film, woven bag, LDPE shrink film or heavy printed film, cement bag, oily bag, dirty bag
|
|
Specification
| Plastic Shredder/ Plastic Crusher, High Speed Friction Washer, Centrifugal Dewatering Washer, Spiral Feeder, Floating Tank, Spiral Feeder , Two Main Shafts Rotting Tank,Squeezer or Squeezer & Agglomerator.Easily operated with power saving
|
|
Output Type
| crushing, washing, dewatering, drying,granulating and packaging The humidity of final output could be within 3% to 5%.Material will be processed by crushing, washing, dewatering, squeezing & aggregating. The humidity of final output could be within 2%.
|
|
After-sales Service
| Engineers available aboard installation
|
Raw Material
After Process
Feature
The whole PP woven bag washing recycling machine process includes shredder, water rinsing, friction washing, drying and washing system, the final flakes humidity will be less than 5%, it could send to our compactor granulating machine to make new granules directly.
Detailed Photos
PC Series Crusher
The PC series Crusher is to cut the big bag into small flakes by rotating blades inside. The specially design powerful crusher can be provide strong cutting ability. The screen hole inside of the chamber will control the size of PP flakes between 40mm-60mm.
>>
