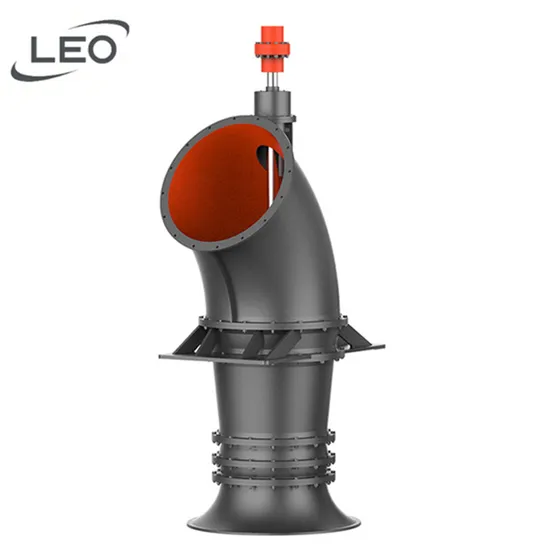

Leo Industrial Electric Vertical Axial Flow Water Pump for Water Conservancy Projects

Product Description

General Information
ZLB vertical axial flow pump is a new generation of small and medium-sized axial flow pump developed by our company. This pump head is low, the flow is large,this series of products has a wide spectrum,good hydraulic performance and novel structure,it is characterized by high efficiency,good cavitation performance,easy installation and maintenance;and the same time,combined with the latest information control technology,the intelligent water pump system independently developed can be configured,with automatic monitoring function,the design,manufacture,and quality of this series product meet the standard of GB/T13008"Technical condition for mixed-flow pump and axial-flow pump"
Application
This series of products can be used for clean water or other liquids with physical and chemical properties close to water whose temperature of conveying medium is no more than 50ºC.They are widely used in large-scale water conservancy projects, farmland irrigation,industrial conveying water,The thermal power station carries circulating water, shipyard level,urban water supply and drainage and water diversion projects
Performance Parameters Table

Model	Capacity(m³/s)	Installation angle	Head(m)	Pump efficiency (%)	Shaft power(kW)	Speed(rpm)	Impeller outer diameter(mm)
800ZLB-85	1.85	-2	6.6	86.4	139.1	730	650
	1.95	0	7.1	86.5	156.4
	2.02	2	7.5	86.6	171.9
	2.07	4	7.8	86.4	183.6
	2.14	6	8.1	86.7	196.3

Product Attribute
Material Table of Standard Configuration

Part description	Water		Sewage
	GB	ASTM	GB	ASTM
Suction cone	HT250	A4835	QT500-7	Gr.80-55-06
Guide blade body	HT250	A4835	QT500-7	Gr.80-55-06
Impeller	HT250	A4835	ZG07Cr19Ni10	CF8
Impeller chamber	HT250	A4835	QT500-7	Gr.80-55-06
Outlet bending pipe	HT250	A4835	QT500-7	Gr.80-55-06
Shaft sleeve	06Cr19Ni10	304	14Cr17Ni2	431
Shaft	40Cr	5140	20Cr13	A276-420
Coupling	HT250	A4835	QT500-7	Gr.80-55-06
Guide bearing	Rubber bearing	/	Thordon bearing	/
Gland box	HT250	A4835	QT500-7	Gr.80-55-06
Packing seal	PTFE	/	PTFE	/
Thrust radial bearding	Rolling bearing	/	Rolling bearing	/
Motor base	Q235B	A36	Q235B	A36
Drive the base	HT250/Q235B	A4835/A36	HT250/Q235B	A4835/A36

Structural Feature
1.Guide bearding
Standard with high quality rubber guide bearings with small friction coefficient, vibration absorption and especially suitable for axial flow pump
The lower guide bearing adopts lengthened structure with better length-diameter ratio, which greatly improves the stability of rotor parts;
Designed with enough lubricating flume,and good cooling lubrication effect 2.Outlet bending tube Precision casting,reasonable radius of curvature,internal passage smooth transition,performance optimization
The design of the multi-rib structure increases the strength and the rigidity of the body
Reasonable hoisting hole design,convenient hoisting 3.Impeller chamber Precision casting,internal passage smooth transition,performance optimization
Half structure for easy maintenance 4.Thrust bearding unit Under conventional working condition,the heat radiation rib of the outer circle radiates heat,so that the external water receiving difficulty in the field is solved
Under special working conditions,increase the heat radiation of the coil to ensure that the unit runs for a long time
Equipped with on-line vibration measurement and temperature measurement device to ensure safe running 5.Principal shaft Standard steel for high strength shaft,high strength,good rigidity,high critical speed,ensure reliable operation
And the part matched with guide bearing and packing is provided with removable protective sleeve, with convenient maintenance 6.Impeller The 3-D flow theory design and CFD computational simulation are adopted,with high efficiency and wide high-efficiency zone,and good cavitation performance
Independently developed hydraulic model,high efficiency area is wide
Adopt metal mould,precision casting
Product Feature
High-efficiency energy saving: the hydraulic model is designed by 3-D flow theory and calculated by CFD computational simulation,with the best performance in theory. Hydraulic components are made of metal mold,cast precisely guide blade mould is machined by CNC;guide blade shell and suction cone blank are cast by resin sand,solid flow channel is completely in accordance with design drawings,with efficiency higher, and wide high efficiency zone
High reliability:the design of the inlet flow channel is reasonable, the inlet water is uniform without vortex, with smooth running, the absolute concentricity o the pump shaft, and the excellent static balance of the rotor parts ensure that the pump has low vibration and low noise when running at high speed
Advanced technology:all parts using metal mold,precision casting,parts quality is reliable
Low maintenance: reasonable structure,convenient assembly and disassembly, and simple maintenance
Inventory management: reasonable inventory management,short lead time,fast delivery
Automatic monitoring: Equipped with intelligent water pump system independently developed,with automatic monitoring function
Ordering Instructions
1.Please provide the following information when placing an order
★Pump mode or working conditions data:capacity,head and parameters such as efficiency and site water level elevation need to be met
★Medium:type,temperature,corrosive and other physical or chemical proerities
★Parts material(If not to specify material,pump will be supplied according to standard material )
★Motor requirements:power ,voltage,protection class,insulation class,cooling method,anti-explosion or not etc
★Other display instruments and monitoring equipment requirements,such as pressure gauges,bimetal thermometers,PT100 temperature resistance,vibration measuring devices,pressure transmitters,etc 2.Model selection instructions ★The order is not limited by the performance parameters list.data in the catalogue is only special point parameter,we can design and manufacture the product according to the user requirements
