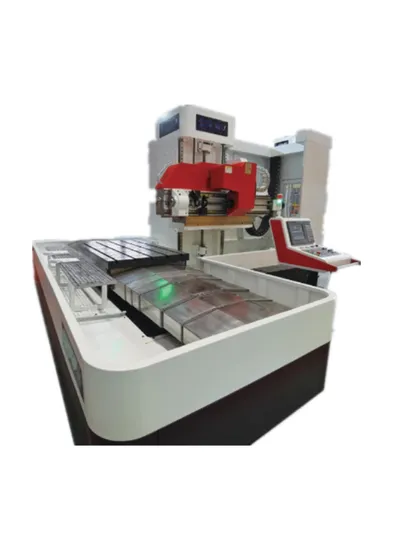

High Accuracy 6 Axises and Workpiece CNC Deep Hole Gun Drilling Machine for Mold

Product Description

Double spindle deep hole drilling machine with milling function can increase the functions of CNC rotary table and automatic tool magazine according to the user's requirements, mainly used for the processing requirements of multi process parts such as hot runner. As a special machine tool for deep hole machining and milling, its productivity and precision will be greatly improved!
Single rotation, tool magazine, drilling and milling integrated five axis customized machine tool. Application scope: complex process processing of oil circuit board, radiator and batch parts.
Product Parameters

Items		R10-1210	R13-1613		R15-2515	R15-3017
Processing Capacity	Diameter of the Hole for Gun Drill	3~30 mm	3~50mm		3~50mm	3~50mm
	Maximum Depth of the Hole for Gun Drill	1000 mm	1300 mm		1500 mm	1500 mm
Processing Range	Processing Range (from Left to Right) of the Working Table	1200 mm	1600 mm		2500 mm	3000 mm
	Processing Range of Sliding Table	1000 mm	1300mm		1500mm	1700 mm
	Processing Range of Column	500 mm	600 mm		800 mm	800 mm
	The Rotary Angle of Ram	The Spindle Turns upward 15 degrees, and down to 25 degrees
Spindle	Taper Hole of Spindle	BT40	BT50
	Maximum Speed of Spindle	4500 rpm
Power	Spindle Motor	11 kw	15kw/18.5kw
	X Axis Servo Motor	27 N.m	36 N.m		36 N.m	36 N.m
	Y Axis Servo Motor	27 N.m	36 N.m		36 N.m	36 N.m
	Z Axis Servo Motor	27N.m	36 N.m		36 N.m	36 N.m
	W Axis Servo Motor	11 N.m	27N.m		27N.m	27N.m
	A Axis Servo Motor	20 N.m	36 N.m		36 N.m	36 N.m
	B Axis Servo Motor	20 N.m	36 N.m		36 N.m	36 N.m
	Total Power	45kw	55kw		55kw	55kw
CNC Index Table	Max. Loading Capacity	5 ton	5 ton		15 ton	20 ton
	Measurement	1000×1000 mm	1200×1200 mm		1800×2000 mm	2200×2400 mm
Cooling System	Pressure Range of Cooling Liquid(Gun Drill)	2~15MPa(Set2~9 MPa)
	Flux of Cooling Liquid(Gun drill)	6~85L/min
Measurement &Weight	Floor Area of Machine Tool(Length*Width)	7500×5500 mm	8000×6200 mm		9350×6500 mm	10050×7200 mm
	Maximum Height of Machine Tool	4200 mm	5400 mm		5600 mm	5800 mm
	Wight of Machine Tool	16ton	30 ton		30 ton	40 ton
System	CNC System	FANUC Oi-MF
Milling Function	Milling Range	1400mm		1900mm

---
