Four Edges Trimming Saw for Plywood Processing

Product Description

Product DescriptionThe Guide Rail Type Edge Trimming Saw is used to cut and trim the roughness of the four sides,
or adjust the size of the board, which is widely used in
plywood, woodworking, furniture manufacturing,
or other areas where high precision cutting is required.
It is equipped with a guide rail system that helps the saw follow a straight line or predetermined path for stable cutting.
USAGE
1. Woodworking and Furniture Manufacturing:
Especially suitable for cutting large-sized wood boards, such as plywood, particleboard, solid wood boards, etc.
2. Construction and Renovation:
Suitable for cutting floors, gypsum board and plastic board.
Working Principle:
The Guide Rail Type Edge Sawing Machine
typically consists of a guide rail with a locking system,
the saw is fixed on the guide rail and cuts materials along it.
The size and cutting method of the saw blade are similar to those of a traditional circular saw, but due to the guide rail,

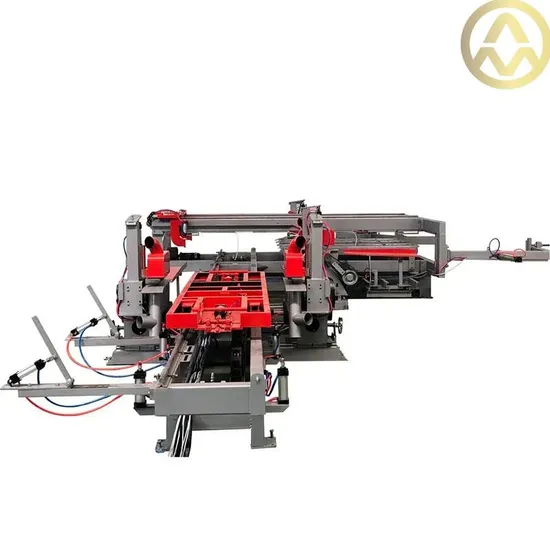

the saw will not deviate from the predetermined cutting line.Machine Photos for Reference
Product Parameters

1	Model	BDDS-4*8
2	Main frame material	100 * 120 mm square steel tube
3	Cutting size	1220 * 2440 mm
4	Cutting thickness	maximum 60 mm
5	Diagonal tolerance	less than 1 mm
6	Straightness tolerance	less than 0.5 mm
7	Saw head	Casting, fine finishing
8	Bearings	NSK (Japan brand)
9	Voltage standard	380V, 50HZ
10	Pneumatic element	AKS
11	PLC brand	SIMENS
12	Touch screen displayer	SIMENS
13	Main elctrical parts	CHINT
14	Inverter	DELTA
15	Feeding speed	0 - 30 m / min, (adjustable)
16	Saw blade speed	6800 turns / min
17	Electrical control panel	dust-free and powder painting
18	Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
		small saw blade head 1. 1KW, 4 pieces
		lift table motor 3 KW, 1 piece
		working table motor 1.5 KW, 2 pieces
19	The first saw guide rail	30 mm diameter, Six arrises guide
20	The second saw guide rail	30 mm diameter, cylindrical guide
21	Saw blade	4 big saw blade, 4 small saw blade (Germany BAK)
22	Gross weight	4800 KG (It needs 1*40HC container to load)

Machine Features
1. Guide rail system:
The saw moves along the guide rail, ensuring a straight and precise cutting line,
avoiding any possible deviation in manual operation.
2. High efficiency:
Workers can superimpose multiple layers of boards on the machine to process them at the same time
3. Precise cutting:
The guide rail ensures that the saw cuts along the predetermined path, which is very important for jobs that require high precision, especially for straight cutting of wood boards, plywood or other panels.
4. Adjustable cutting depth:
It allows users to adjust the cutting depth, suitable for materials of different thicknesses.
5. Clean and accurate cutting edges:
Using the guide rail system can ensure a smooth and flat cutting edge, reducing the subsequent trimming.
6. Easy operation: Users do not need to control the cutting direction too much.
7. Reducing cutting errors:
The guide rail limits the movement of the saw, reducing the problem of inaccurate cutting due to operator error.
Company Profile
LINYI ZHONGHE IMP. & EXP. CO., LTD. is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood,
other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1. Wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer,
wood veneer clipper, wood veneer stacker, veneer tape, etc.2. Plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine,
glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw,
sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3. Particle board machine and MDF board machine.4. Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener. Certifications
Frequently Asked Questions1. What products does your company offer?
Our company specializes in manufacturing and supplying equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
• Brazil (where we have local distributors)
• Argentina
• Paraguay
• Fiji
• Pakistan
• Bulgaria
• Ghana
We have experience working with these countries and can arrange shipping and handling in compliance with local regulations.

---
