Intel X86 J1900 /J4125 Processor Fanless Small Embedded PC Computer 12V
VESA installation and fixation, supports both side L bracket fixation, or 35mm rail fixation
Intel® Celeron J1900/J4125 2.0GHz Quad-Core processor
2*R232 or 2*R485
| Machine | Item | ZRG230 |
| Size | 136*127*40mm |
| Material | Fanless,fully closed |
| Surface | Aluminum chassis(Black) |
| Package list | Chassis, thermal conductive silicone, WiFi plug, screws, packaging materials |
| Setting | Processor | Intel® celeron® J1900/ J4125 4 core/2.00GHz |
| Intel ® N2840 dual core ,2.16GHz |
| Memory | 4G/8G |
| Storage | 64G/128G/256G(SSD) |
| Ethernet | Realtek RTL8111F Gigabit Ethernet ports,Support network Wake-up/PQE |
| Operation system | Win7/Win10/Linux(J4125 not support Win7) |

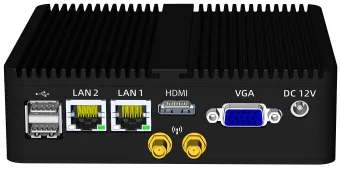

| Interface | 2*LAN,6*USB,2*R232(R485 optional) |
| 1*HDMI,1*VGA,1*Audio interface (2-in-1) |
| WIFI(Option) | Support WIFI/Bluetooth |
| 4G(Option) | Support 4G/GPS |
| Power type | 12V DC input,Outer diameter 5.5mm, inner diameter 2.5mm |
| Adaptor | AC-DC 12V@4A,48W |
| Ambient | Working temperature | -10ºC~65 ºC |
| Storage temperature | -20ºC~70ºC |
| Working humidity | 5%~95% Relative humidity, no condensation |
| Others | Heat dissipation | Fanless cooling design, passive cooling |
| Power on | Switch start, supports automatic startup upon incoming call |
| Watch dog | hardware reset function(256 level,0~255 second) |
| Installation | VESA ,both side L bracket fixation, or 35mm rail fixation |
| Package list | 1 * machine, 1 * power adapter, 1 * power cord, 1 set of screws |
