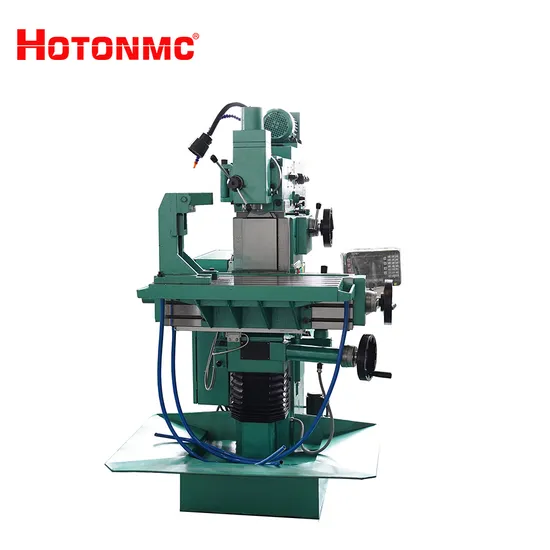

X8132 universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool.
| Model | X8132 |
| Horizontal working surface | 320x750mm |
| T slot no./width/distance for Horizontal work table | 5/14mm /63mm |
| Vertical working surface | 225x830mm |
| T slot no./width/distance | 3 /14mm /63mm |
| Max. longitudinal (X) travel of working table | 45/400mm |
| Max.cross travel (Y) of horizontal spindle slide | 305/300mm |
| Max. vertical travel (Z) of working table | 400/390mm |
| Distance from axis of horizontal spindle to surface of horizontal working table | Min. | 85±63mm |
| Max. | 485±63mm |
| Distance from nose of vertical spindle to surface of horizontal working table | Min. | 85±63mm |
| Max. | 450±63mm |
| Distance from axis of vertical spindle to bed guideway (Max.) | 425mm |
| Range of spindle speeds (18degrees) | 40-2000r/min |
| Max. Swivel of vertical milling head | ±90° |
| spindle taper bore | ISO40 7:24 |
| Range of longitudinal(X),cross(Y) and vertical (Z) traverse | 10-380mm/min |
| Rapid feed of longitudinal(X),cross(Y) and vertical (Z) traverse | 1200mm/min |
| Travel of vertical spindle quill | 80mm |
| Main drive motor power | 2.2kw |
| Total power of motor | 3.59kw |
| Overall dimension | 1215x1200x1800mm |
| Net weight | 1300kgs |
| Distance from vertical table surface to vertical guideway | 160mm |
