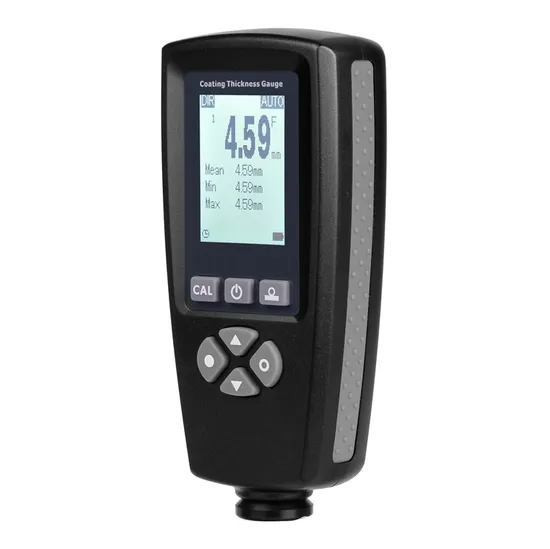

EC-770X Car Body Damage Checker High Accuracy Coating Thickness Gauge
EC-770 series of thickness gauges support non-destructive measurement of metal surface non-conductive coating, as well as ferromagnetic metal (such as iron, nickel, cobalt) surface non-ferromagnetic metal coating thickness, specific uses include measuring iron, stainless steel surface paint or galvanized layer thickness, measuring aluminum, copper surface paint plastic film thickness.
| Model | EC-770X |
| Probe | F-Probe & N-Probe |
| Measuring Principle | Magnetic induction & Eddy Currents |
| Measuring Range | 0 to 2000 um |
| Accuracy | ± (2%+1 um) |
| Resolution | 0~99.9um(0.1um), others(1um) |
| Calibration | One point to four points calibration, zero point calibration |
| Data Group | One direct group(readings not be stored to memory) |
| Four general groups (readings will be stored automatically) |
| NOTE: each group have individual statistics, alarm limit settings, and calibration |
| Statistics | No. of readings, mean, minimum, maximum and standard deviation |
| Units | um, mm, mil |
| Alarm | User can set the high/low alarm limit; Alarm icon displayed on LCD when over the limit |
| Minimum Curvature Radius Convex | 1.5 mm |
| Minimum Curvature Radius Concave | 25 mm |
| Minimum Measuring Area | Diameter 6 mm |
| Minimum Thickness Of Substrate | F-probe: 0.5 mm(0.02");N-probe: 0.3 mm(0.012") |
| Computer Interface | Download data via USB |
| Power Supply | Two 1.5 V AAA battery |
| Operation Environment | Temperature: -10 to 50ºC |
| Storage Environment | Temperature: -10 to 60°C(-4 to 158°F) |
| Standard Certification | CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003 |
| Dimensions | 113X53X24mm, 80g(int. probe)/142g(ext.), ABS |
| Readings memory | 2000 readings |
