0.01~0.02 (mm) Whole Machine Life Gooda Manufacturer CNC Cutting Milling Center

Product Description

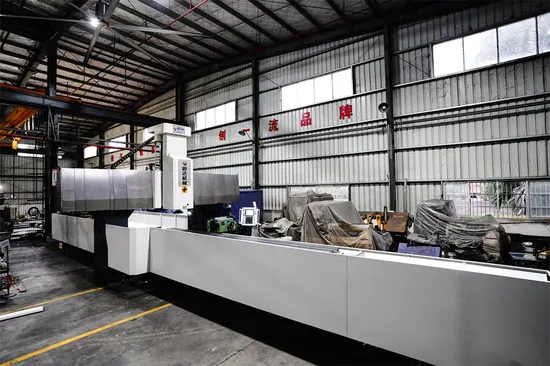

GOODA Veritical Milling Center VM-2360NC
Super Size CNC Gantry Milling Machine
CNC Planer Milling Machine / Metalworking Machine Tool
Steel Plate / Moldbase/Manifold Block Surface Treatment Tool
Automatically remove chips & Measure
Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
Both For Rough Milling And Finish-Milling to reduced processing time and save money.
TECHNICAL PARAMETER

VM-2360NC Specifications
No.	Item	Description	Specification
1	Model	GOODA CNC Gantry milling machine	VM-2360NC
2	Travel	Max Cutting Length mm	6000
		Max Cutting Width mm	2300
		Max.cutting Height mm	1400/1700
		Column Size mm	2300
3	Worktable	Worktable size mm	6000*1800
		Max loading weight kg	25000
		T-slot Size mm	22*150*5
4	Spindle	Spindle power kw	11
		Spindle taper	BT50
		Cutter Size mm	250
5	Feeding speed	X axis mm/min	0-6000
		Y axis mm/min	0-6000
		Z axis mm/min	0-6000
6	Motor power	Vertical Milling Head Kw	15
		Vertical Feed Travel mm	350
		Side Feed Motor mm	11
		Worktable Kw	7.5
		Beam kw	3
		Feed motor kw	2.2
7	Dimension & weight	Machine area mm	4.5*2.9
		Machine weight kg	9000

Features and applications: Automatically measure, automatically processing and excellent surface performance. Maintain high accuracy for dimension, squareness and parallelism. One loading and one setting needed only is helpful to shorten the preparation time. Mainly used for pre-squared steel pate and non-ferrous metal materials for flat surface. Machine bed base with chip removal groove. Company Profile
Dongguan GooDa Machinery Manufacturing Co.,Ltd established in 2012, is the first national high-tech enterprise integrating R&D,manufacturing,sales and service of CNC milling machine tools in China.The company has manufacturing bases in Dongguan Changping,Huangjiang,Qishi and Jiangsu Kunshan, and offices in the United States,South Korea, Malaysia,Thailand,Vietnam and Brazil.At present, it is one of the largest manufacturer of CNC Duplex milling machines in the world.
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers.
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold indust
CERTIFICATION
According to following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity benefits
GooDa CNC milling machines offer the following benefits:
1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.
2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.
5.Save you time and money and increase your productivity by high speed milling.
6. Maximize tool life assuring your production will pay dividends for many years.
GOODA will all here serve you.
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment. After sales Service:
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards GOODA just need a chance to be your reliable Cooperative Partner
Your inquiry is welcomed at any time.

---
