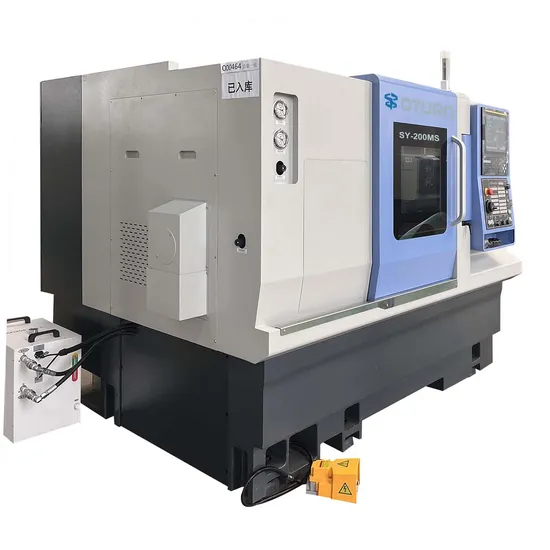

Multi Spindle CNC Turning Lathe with Double Spindle and Siemens

Product Description

Product Description
Crafted with high-strength HT300 one-piecestructure,castingironbedfeaturing a 30-degree steptypeflat rail structure. Utilizing finite element analysis, this design ensures excellent overall mechanical rigidity and stability. It can maintain long-term reliable accuracy, processing stability, and tool life. Stress relief treatments furtherimprove accuracy and stability. The high-strength roller rail design and the screw pre-tension drive system design enhance response rigidity.
Both ends of the workpiece can be processed simultaneously in a single clamping, significantly simplifying manual operations, increasing output, and reducing process steps. The second spindle offers full turning capabilities, allowing workpieces to be expressed during machining, thereby reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ringtypeincremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminates spindlevibration,with deflection accuracy at the nose end within 0.002mm,improving the surface finish of the workpiece.
The rear-mounted rotor allows for easier installation and maintenance.
Equipped with a cooling system, the spindle motor suppresses thermal displacement effects, ensuring a constant working temperature. The spindle system undergoes strict dynamic balance tests, guaranteeing precision retention, high rigidity, and efficiency. This enables the machine to perform both finishing machining and rough machining, including heavy cutting, making it ideal for mass production of complex shapes with high precision.product.
2. High rigidity integral servo power turret with rapid and precise tool change performance. The tool holder uses a high-rigidity BMT interface, driven by a servo spindle motor for power transmission.
3. Equipped with THK linear guide rails and ball screws, the machine ensures optimal precision and durability. The heat-treated and precision-ground ball screw enhances performance. Each axis features a direct transfer shaft structure and a double-anchor pre-relay method, minimizing thermal displacement and significantly improving machining accuracy. The high rigidity, large size, and heavy-duty linear slide rails ensure that machine accuracy remains unaffected by impacts, providing smooth displacement and low noise, thereby extending service life.
4. Standard configuration includes the FANUC system, and the feed drive utilizes a FANUC servo motor.
5. The integrated hydraulic and lubrication system uses high-quality hydraulic pumps, valves, and components to greatly reduce failure rates. The design is simple yet highly reliable.
6. Featuring a Taiwan rotary chuck, oil cylinder, and an automatic chip removal device, this system significantly reduces operator labor intensity while ensuring safe and efficient production. All functional components are programmatically controllable, including special fixtures.
Product Parameters

Name	Unit	SY200MS
The largest diameter rotating bed	mm	Ф600
Max processing diameter	mm	Ф400
Max.Swing Over Cross Slide	mm	Ф300
Max processing length	mm	290
Bar diameter	mm	Ф45/45
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
X/Z/S motor power	kw	2.4/2.4/1.8
X/Z/S travel	mm	240/230/360
X/Z/Y/S axis moving fast	mm/min	20/20/20
Slide rail type	mm	35
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
The Tool tower type	mm/pcs	BMT55-12T
Power cutter tower motor	Kw	5
Max speed of spindle	rpm	5000
The tool biock specifications	mm	25x25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.15
Machine size	mm	2600*2100*1900
Machine Weight	kg	4500
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2L
Auto lube pump motor power	W	50
Cooling water pump power	W	750
