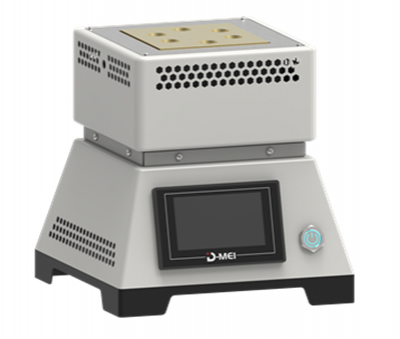

DY-SRD400 flash ignition point measuring device

Product Description

Product Description
【 Product Introduction 】
DY-SRD400 flash ignition point measuring device is specially developed by our company for calibration of special flammable and explosive products, which is widely used in petroleum, chemical industry, electric power, commodity inspection, universities, scientific research and other departments. The flash ignition point measuring device is composed of an electronic regulating multipurpose electric furnace, a copper block and a constant temperature control instrument. The copper block is placed on the electric furnace and the copper block is designed with a conical hole.
【 Product Features 】
1, touch screen design, simple operation;
2, all Chinese/English interface display (optional);
3, good temperature control stability, high equipment accuracy, good repeatability;
4, the instrument structure design is reasonable, beautiful shape, environmental protection.
【 Technical parameters 】
Model number
DY-SRD400
Temperature range
Room temperature +5℃-400℃
Resolution
0.1 ℃
Display mode
Color touch screen operation
Temperature control stability
Furnace temperature change ≤1℃/min(under stable state)
Supply voltage
220V AC 50HZ
Recommended thermocouple standard (second class standard PT rhodium 10-PT thermocouple)
weight
15KG
Overall dimension
260mm(L)×260mm(W)×280mm(H)
Use environment
22 ° C ±3 ° C Humidity <80%RH
power
≤800W
Aperture number
6 PCS (customizable)

---
