High Carbon Steel Wire Drawing Machine for Spring Wire and PC Wire

Product Description

Product Description

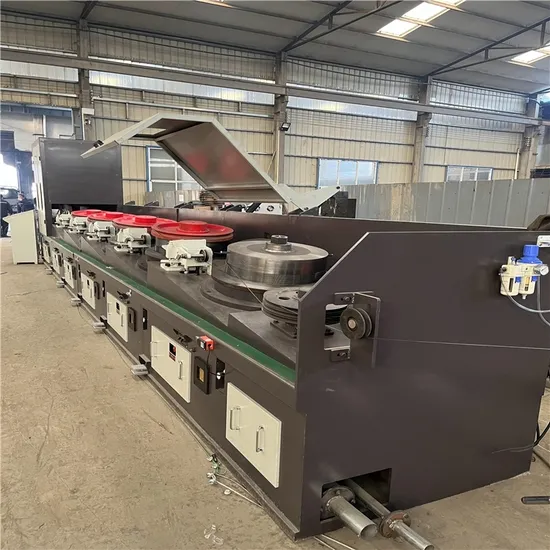

The water tank type wire drawing machine has heavy water tank and turnover water tank. It is suitable for drawing various metal wires of medium and fine specifications, especially high, medium and low carbon steel wire, galvanized iron wire, bead steel wire, rubber hose steel wire, steel cord, copper wire, aluminum wire, etc.
Production Process
Water tank type wire drawing machine is a small continuous production equipment composed of multiple drawing heads. Through step-by-step drawing, the drawing head is placed in the water tank, and finally the steel wire is pulled to the required specification. The whole wire drawing process is completely controlled by the mechanical speed difference between the main shaft of the drawing machine and the lower shaft of the drawing machine.
Machine Feature
The feature of this machine is that the machine is equipped with 4 tower wheels and 45 kW motor at the same time, which can make the wire drawing range of the machine reach 3.0-1.0 mm Its biggest advantage is the use of a separate trunk type wire take up system. It can meet more production needs of customers.

Wire Payoff system
The wire pay-off system already includes a heavy-duty pay-off reel capable of carrying 2 tons of wire, and is also equipped with a wire shelling device.
Mold box
Our mold box can be designed according to the customer's mold size, making it convenient to use.

Drum
The drum is sprayed with cast steel, which can effectively prevent grooves caused by long-term use of the drum and extend the mechanical service life.
Wire crane
The machinery is equipped with a wire crane, which can carry a weight of up to 350 kg of wire, making it easy to remove and package the completed wire. Save time.
Inverter
Each drum is equipped with a frequency converter, which allows customers to adjust the mechanical speed, saving time and electricity.
Control box
The mechanical control is simple and flexible, and the control box can be placed in any convenient position.

Product Parameters

Incoming wire diameter	2.0-3.0 mm
outgoing wire diameter	0.8-1.0 mm
Max speed	550 m/min
Number of drawing molds	16
Tower wheel	Alloy
Main motor	45 kw
Wire Take-up motor	4 kw
Wire Take-up mode	Trunk type
Power control	Frequency conversion control
Tension control	Swing arm

Packaging & Shipping
1.All small mechanical components and free accessories will be individually packaged in wooden boxes.
2.We will wrap the large mechanical body in plastic film and fix it inside the container with steel wire rope.
Our Advantages
Variety of products
Our equipment includes roof roll forming machine, floor deck roll forming machineautomatic decoiler, light keel roll forming machine, purlin machine, leveling andslitting machine, and other related mechanical components like mill rolls.
Accept customization
We have extensive experience in the needs of different countries, such as profilethickness range,use,installation, etc
Pre-sales and after-sales
Thank you for your trust and choice, we will provide you with the best servicesupport and help you achieve greater success.
Brand cooperation
Our machines use branded electrical components, raw materials from brandedsteel factories, strict process control, one-year warranty, installation and trainingservices.
Company Profile
We, Tangshan Shuoen is a professional cold roll forming machine manufacturer, We have been focusing on this field for 10 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.Shuoen has employed a team of engineers for more than 10 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Certifications

FAQ
Q1. How long is your warranty period?
Within 12 months from the date of self loading, we guarantee that no malfunctions will occur due to manufacturing defects.
Q2. How can I trust the machine to paste and test before shipment?
We have recorded a test video for your reference. Alternatively we welcome you to visit our factory and personally test the machines.
Q3: If you can customized the roofing sheet forming machine for i need?
Yes, Just share your design to us is ok, we will give you one fully quotations.
Q4: What's your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers' workshop if needed.

Q5: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time.

---
