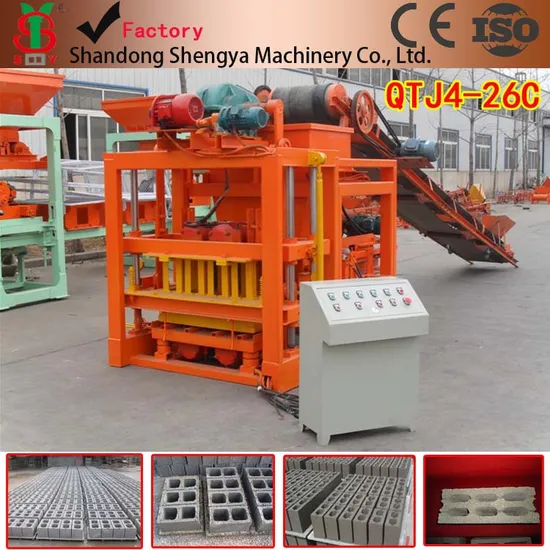

Hollow Interlocking Brick Making Machinery Hot Sale in Mozambique Qtj4-26c

Product Description

Contact:Bobby Zhang
QTJ4-26CFully Automatic Cement Block Shaping Machine has absorbs the advantages of different machines home and abroad , the new of machine was produced after research and development, considering the conditions of use and maintenance in the middle and small sizes factories that use cement block shaping machines. Its characteristics are as follows:
1. Transfer mechanism adopts mechanical drive, and use mechanical power reasonably and effectively, it can finish several technology actions without breaking. Transfer mechanism wears well and is convenient for corrective maintenance.
2. When the machine is forming concrete brick, it librates up and down. There is vibration table with vertical orientation under the mould box, and vibrator vibrates with compression over the crossbeam, thus when it produces concrete brick or pavement block, satisfactory shaping effect can be achieved, it fits for producing concrete brick or pavement block of high strength.
3. The machine is of multi-purpose, it can produce walling unit, pavement block and figure walling unit, etc. Of many shapes and sizes, when consumer produce concrete brick or pavement with colorful layer, you can pull out the feeding arrangement, and set up a charging deck to adopt artificial feeding, which can not only save the cost of colorful layer, but also produce different kinds of concrete brick or pavement with colorful layer and so on.
4. The machine can use common plate as shaping baseboard.
5. The machine operates automatically, has high manufacturing efficiency, and needs low intensity of labor.
Main Technical Data:
Product Quantity of Different Moulds
390×190×190mm 4pieces/mould
390×240×190mm 3 pieces/mould
390×90×190mm 8 pieces/mould
240×115×90mm 9 pieces/mould
240×115×53mm 21pieces/mould
Shaping Cycle 25s

production capacity	400x200x200mm 3840 pieces /8hour 400x150x200mm 4800 pieces/8hour 400x100x200mm 6720 pieces/8hour
power	11.75kw
overall size	3000X1600X2500mm
cycle	26 seconds
pallets size	850x550x25mm
vibration force	40KN
vibration frequency	4000-4800/Minute
rated pressure	12Mpa
total weight	3500kg
electricity source	380v/50HZ

---
