PLC Control Automatic Parallel Paper Tube Making Machine

Product Description

SECTION ONE--PRODUCT DESCRIPTION

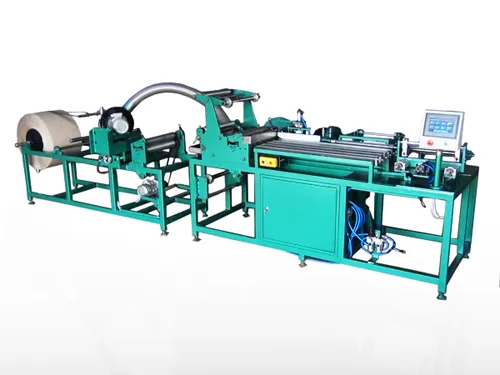

PLC Control Automatic Parallel Paper Tube Making Machine
1.Brief Introduction
The machine is used for producing parallel paper tubes automatically. It consists of paper stand, paper edge grinding device, gluing device, paper cutting device, tube forming, tube discharging device, and a simple slanting stacker. The machine is equipped with Siemens PLC, Inverter. 2PCS mandrel is with machine.
2.Technical parameter

Parameters:
Model	SANPT16-50
Max. Size of jumbo paper roll	1020 mm X 1300 mm (Width*Dia.)
Max. Paper tube length	1200mm,1600mm,1800mm
Paper tube inner diameter	16 - 50 mm
Paper tube thickness	2-10 mm
Paper gram mage	200-550 gsm
Production speed	23-26/min

3.Machine Details
4.Finished Product
5.Our Exhibition
6.FAQ:
About Trade Term
Q-----What's the trade term for making business with us?
A----- FOB,CFR,CIF; It's mainly depend on client's requirement;
About Delivery Time
Q------What's the Delivery time after placing order ?
A------Usually it takes about 30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the manufacturing process of the item.
About Payment Term
Q------What's the Payment Term?
A------ By T/T or L/C.(Please contact us to know more detailed Infro)
7.Testing And Packing We testing every machine before shipment
The machine will be packed and shipped by container
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing.

---
