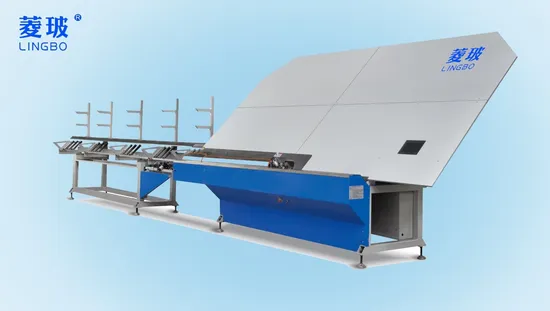

Product Description The advantages of CNC Insulating Glass bending machine price Aluminum Spacer Arc Bending 1.Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient . 2.Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within ±0.3mm/m, angle error within ±0.3°. 3.Be able to imitate finished frame shape. The image is symbolic and lively . 4.Four profile magazines for different specifications of spacers . 5.All activities can be controlled manually for the convenience of test and overhaul. 6.Intelligently avoid spacer connection part. Automatic cutting after bending. Shape shift among line,angle and arc are flexible. Product Parameters Parameter of CNC Insulating Glass bending machine price Aluminum Spacer Arc Bending
Spacer Width
6mm-20mm
Frame size
Max:2000mm×2000mm Min:350mm×350mm
Conveying speed
at 0-90m/min(adjustable)
Air pressure
0.7MPa
Power
3P 415V/1P+N 240V, 50Hz 5kW
Machine Size
10000mm(L)×2200mm(W)×2600mm(H)
