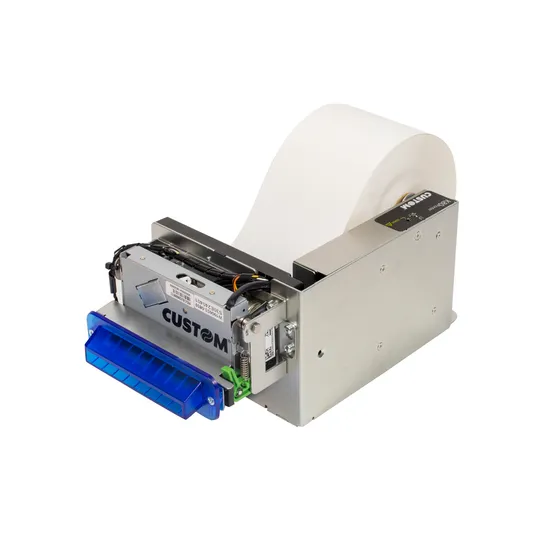

80mm Kiosk Ticket Receipt Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Thermal Printer

Product Description

Product Description80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K8080mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80Features:200dpi best printing qualityPaper width from 76 to 80mmPaper roll (diameter 180mm on board)RS232 and USB interface1D/ 2D barcodes printing capability (QRCODE)International fonts on board: any language availableHighly reliable cutterSensors: Head temperature, paper presence, near paper end, black mark 6 position, ticket outAVAILABLE VERSIONS:
K80 - TORNADO PRINTER: With output paper mouth, anti intrusion shutter and ticket sensor, low paper level sensor for roll up to 180mmK80 - PRINTING KIT: kit including printer mechanism, cutter & board, ideal for queue managementIdeal solution for ATM's VTM's & Self Service Kiosk
Ultra-compactHeavy-duty alluminium printing engineAnti-jamming systemAnti-instrusion shutterAnti-splash paper exitOn/off switch80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80Product Parameters80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80
TECHNICAL SHEE

Printing Method	Thermal, fixed head
Number of dots	8 dot/mm
Resolution	203 dpi
Printing (mm/sec)	150 mm/s
Character set	54 character code tables Extended chinese GB18030-2000, Korean PC949
Supported Barcode	UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
Printing Format	Height/Width from 1 to 8, bold, reverse, underlined, italic
Printing Direction	Normal, 90°, 180°, 270°
Paper width	76, 80 ± 0,5 mm
Paper weight	from 55 g/m2 to 80 g/m2
Paper thickness	from 63 μm to 88 μm
Printing width	from 52 to 80mm
Roll Dimension	max 180 mm
Sensors	Head temperature, paper presence, near paper end, black mark, ticket out
Emulation	CUSTOM/POS
Interfaces	USB + RS232 Serial
Data Buffer	8 Kbytes
Flash Memory	768 Kbytes internal, 4 Mbytes external
RAM Memory	128 Kbytes
Graphic Memory	1 logo (640x409 dots)
Drivers	Windows XP VISTA (32/64bit) Windows 7 (32/64bit) Windows 8 (32/64bit) Windows 8.1 (32/64bit) Linux (32/64bit)
Power supply	24 Vdc ±10% (optional external power supply)
Medium consumption	0.8 A (12,5% dots on)
MTBF	165 245 hours (electronic board)
Head Life	100 Km
MCBF	1.000.000 cut
Operating temperature	from 0°C to +50°C
Dimensions	258(L) x 103.5(H) x 135(W) mm
Weight	1250 g

80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80Detailed PhotosApplications:
80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80
Packaging & ShippingLead Time:

Quantity(Sets)	1 - 500	>500
Est. Time(days)	15	To be negotiated

Company ProfileSuzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.
With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.
Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80FAQ

1.Can I get a sample order first to test the quality and compatibility?

Yes, usually we have samples in stock, customers can easily buy them for testing purpose.

2.What about delivery time?

For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.

3.How about Payment terms?

For sample, Paypal, Western Union. For bulk order, T/T prepaid.

4.How about shipping methods?

DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.

5.How about the warranty?

All items have 1 year guarantee.

6.How will you control the printer's quality?

We fully tested every product before shipping out, and also we have QC persons.

7.Can you make OEM or ODM for products?

Yes, OEM and ODM products are available.

---
