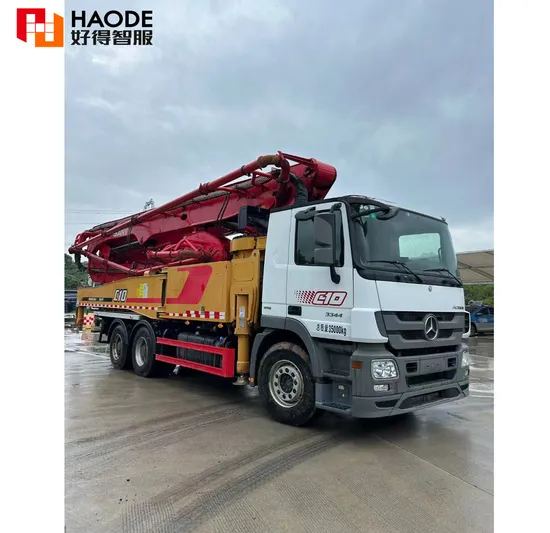

2019 S-a-Ny 52m Used Concrete Pump Truck with Benz Chassis

US$100,000.00-200,000.00 1 sets (MOQ)

Basic Info.

Model NO.
49m pump concrete
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1390mm
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000
Condition
Used
Color
Red
Model No.
Truck Boom Pump
Chassis
Dongfeng, HOWO, Sino Truck,Shaanqi, etc.
Max. Vertical Conveying Distance
50 M
Dimension(L*W*H)
12700 X 2550 X 4000 mm
Unique Selling Point
High Operating Efficiency
Hopper Capacity
600 L
Hydraulic System Type
Open Type System
Power Type
Diesel
Maximum Aggregate Size
40 mm
Max. Horizontal Conveying
50m
Weight
34000 Kg
Theory Output Capacity
100 M3/H
Transport Package
Standard Packing
Specification
steel
Trademark
best
Origin
China
HS Code
8429521200
Production Capacity
5000 Pieces/Years

Packaging & Delivery

Package Size
600.00cm * 200.00cm * 250.00cm
Package Gross Weight
34000.000kg

Product Description

Description Unit Parameter value
Outline dimension mm 12510×2500×3990
Overall weight kg 33000
Chassis Model ZZ5347V484MC1
Max. speed km/h 90
Max. grade-ability % 40
Wheelbase mm 4800+1400
Tire 315/80R22.5
Engine Model MC11.40-30
Max. power kW 297
Max. torque N·m/(r/min) 1900/1000~1400
Displacement L 10.518
Emission standard Eruo III
Pumping system Theoretical output m3/h 170
Concrete pumping pressure MPa 8
Theoretical pumping times Time/min 23~26
Delivery cylinder diameter ×stroke mm φ260×2000
Max. diameter of pumping concrete mm ≤40
Filling height mm 1580
Concrete slump range cm 8~23
Placing boom Reach height m 47.5
Reach depth m 34
Slewingradius m 43.5
Slewing angle ° ±270
Stabilizer span Longitudinal span of stabilizer mm 8955
Transverse span of front stabilizer mm 7884
Transverse span of rear stabilizer mm 9940
