Product Details
Product Description
Product Description

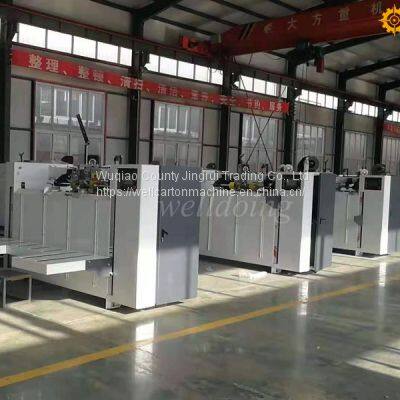

Semi Automatic Stitching Machine
♦ Mitsubishi dual servo drive, precision, mechanical transmission part reduction. can effectively reduce the mechanical failur rate.
♦ weilun touch screen operation, parameters (nail distance, nail number, nail type, backboard) easy to change.
♦ the whole control system adopts Japanese omron PLC control system
♦ rear electric baffle, driven by stepping motor, accurate size, more convenient and fast size conversion.
♦ the full contactor in the control box adopts the brand of Siemens.
♦ relays are all made by schneider.
♦ photoelectric and proximity switches adopt Japanese omron brand.
♦ bottom die, the blade is made of Japanese tungsten steel (wear-resisting).
♦ the whole set of nail head are all made of special steel, computer gong precision processing.
♦ single stitching/, double stitching//, reinforcing stitching(// // // /double stitching at both ends and single stitching at the middle part)can be finished in one time, which can meet different requirements of different customers.
♦ it only takes one minute to change the carton size and adjust the carton stitching distance, which greatly saves time and is convenient to operate.
♦ the front feeding part is automatically counted, and the feeding table is equipped with photoelectric induction device, which automatically rises when feeding.
♦ the back section is equipped with automatic counting function, and the finished pieces can be stacked and sent to the end of the transmission machine according to the set quantity(2-99), which is convenient for packing and binding
♦ electric adjustment of the clearance of the paper press rubber wheel.
♦ machine order type adjustment, can store 100 orders.
♦ protection function of isolating transformer for the whole machine;
♦ automatic wire feeding svstem, 20KG flat wire, save time.
♦ front and rear two-way baffle configuration,can order lideless carton and small cardboard box. color box.
Model
| BDJ-2000B
| Bdj-2500b
|
MAX (A+B) *2(mm)
| 3740 (1100+770)
| 4740
|
MIN (A+B) *2(mm)
| 700
| 560
|
MAX (C+D+C) (mm)
| 2500
| 2500
|
MIN (C+D+C) (mm)
| 400
| 450
|
MIN rock cover C (mm)
| 20
| 75
|
MAX rock cover C (mm)
| 310 500 (optional)
| 500
|
MAX width B (mm)
| 770
| 920
|
MIN width B (mm)
| 150
| 150
|
MAX length A (mm)
| 1100
| 1450
|
MIN length A (mm)
| 200
| 200
|
MAX height D (mm)
| 2000
| 2000
|
MIN height D (mm)
| 150
| 150
|
MAX width of the tongue E (mm)
| 40
| 40
|
MAX height of feeder (mm)
| 900
| 900
|
Overall dimensions (mm)
| 2850*1700*1800
| 3300*1700*1800
|
Weight (T)
| 2
| 2.3
|
Speed (Nail / min)
| 600
| 600
|
Number of Stitching
| 2-99
| 2-99
|
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975
>>
