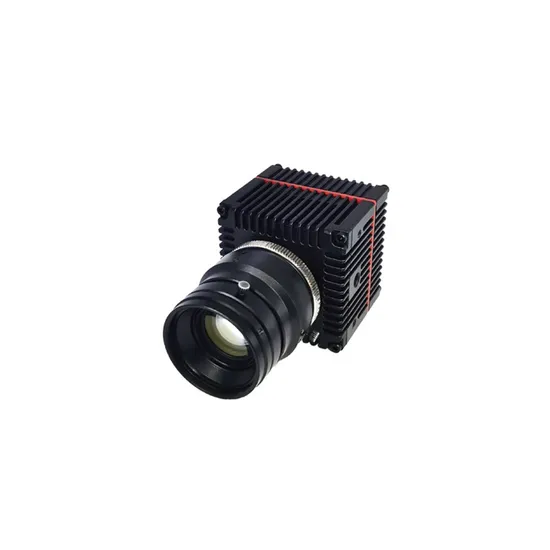

640X512 15um Astronomical Observation Swir Cooled Thermal Camera Module

US$18,000.00

5-99 Pieces

US$16,000.00

100+ Pieces

Basic Info.

Model NO.

CQ-STM6C15L1

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

520tvl

Kind

Autofocus Lens

Certification

CE, FCC

Feature

Waterproof / Weatherproof, High Definition, Mini Size

Effective Distance

≧30m

Sensor Size

1/3 inch

Remote Control

With Remote Control

Resolution

640X512

Frequency Range

0.9um-1.7um

Pixel Size

15um

Cooling Mode

Tec

Digital Output

Cameralink/SDI

Control Interface

RS422

Power Consumption

Transport Package

Carton

Trademark

CQ or customized

Origin

Zhejiang

Production Capacity

1000 PCS / Month

Product Description

The SWIR camera applies InGaAs focal plane TEC cooled detector, with 640x512 resolution, 15μm pixel spacing, and 0.9μm-1.7μm response band.
With primary/secondary TEC Cooling function, the product further reduces the readout noise.
The complete device adopts integrated and modular design, with high sensitivity, small volume, light weight, low power consumption, multiple interfaces and other characteristics, easy to be integrated by the customers.
The SWIR IR camera can be widely used in astronomical imaging, biomedical treatment, industrial monitoring, machine vision and other applications.
Features:· TEC Cooling plus precise temperature control, with the temperature difference up to 40ºC;
· Non-uniformity correction, filtering and enhancement algorithms;
· Miniaturization, low power consumption, high frame frequency;

Model	CQ-STM6C15L1
Technical indicator	Primary cooling
Prober material	InGaAs Focal plane
Resolution	640x512
Spectral range	0.9μm-1.7μm
Pitch	15μm
Quantum efficiency	>70%
Cooling mode	TEC
Cooling temp.	-20ºC
Operating temperature	-40ºC~+70ºC
Input voltage	DC 12V / DC24V
Power consumption	≤5W@25ºC
Digital output	CameraLink / SDI
Analog output	PAL
External trigger	RS422 / LVDS / LVTTL
Control interface	RS422
