Pet Strech Blow Molding Machine, 24000 Bottles/H

Product Description

Demark R12 PET Stretch Blow Molding Machine
Product Description
Blow molding machine is a machine that is essential for creating objects made of plastic. This machine uses a melting process to form the plastic to certain shapes through a mold. The molding process is quick, effective and allows for large-scale production of a wide range of products. The blow molding machine makes it possible to create objects in various shapes and sizes, from small, intricate pieces to large-scale plastic containers and tanks. The machine is fully automated and can handle high volumes of production. It ensures consistent quality and guarantees that each product meets specific standards.

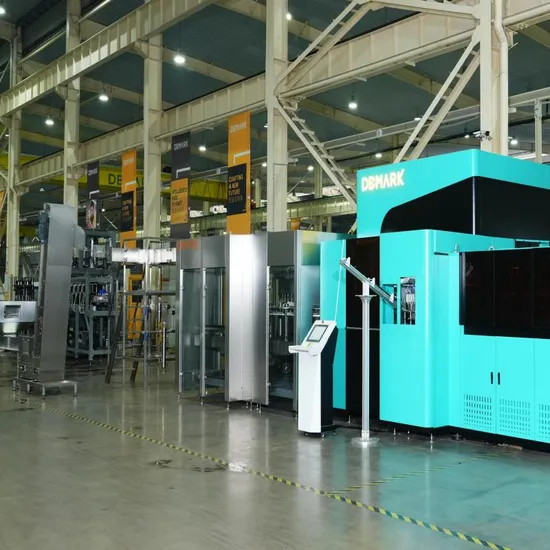

Detailed Photos
Working Process
Working process as follows:
Put performs into hopper → Elevator send performs to arraying system → Array the preforms → Perform loading → Preform heating → Robot put the heated performs into moulds Lock the moulds and start blowing → Finish blowing→ Robot takeout the bottles → Bottle outlet
The electric control system can make control of automation,carrying out strict control in the process of elevating, arraying, loading, heating and blowing. Human interface achieves central control.
Working principle of blow molding machine:
Main wheel of equipment rotates in high speed. The encoder at the top of equipment and sensors installed on the main wheel test the angle of rotation and give computer feedback. Then in accordance with the operator of the procedures it set (angle) issued directives to executing agency(electromagnetic valve). The implementation process of blowing on a specific time, resulting to complete the process of a two step blowing and produce qualified products in rotating equipment.
Technical Advantages
1. Automatic feeding device
Preform will be feeded and listed automatically.The device can adjust the preform quantity according to productivity, start and stop feeding automatically. To maintain uninterrupted feeding and not aggregate.It can adjust its output speed according to different preform type, so that preform feeding quantity coincide with production.

2. Heating machine
There are specially designed ventilation cooling devices and protective plate cooling water cooling in heating machine.Protecting the protection board and external when the temperature is too high. Thermal wind is controlled by frequency adjustable fan. Make sure the preform neck will not distorted by heating and increase the penetration, extend the life of infrared lamp at the same time.

3. Special mould plate system
Specially designed mould plate system make ensure that the replacement of the mould can be do quickly, accurately and good interoperability. Mould plate has pressure balance device. When blowing the bottle, it can make minimum of spew line, ensure the quality and performance of bottle. Special designed seal make low pressure when preform mouth connected with sealing mouth, and will not damage preform mouth.

4. Robot Device
Unlike the old mechanical gripper, the new one does not have a long spring. The use of double groove blank bottle pick-up and delivery cams, optimised robot structure, increased process angle, good synchronisation and coordination, good repeatability of movements, more flexible bottle blowing and lower losses.
