Product Details
Product Description
Product Description
The Copper Nickel elbow is the connector that changes the direction of the pipe. Connection methods are threaded and welding. According to the angle, there are 45° and 90°, 180° three kinds of the most commonly used, according to the project also include 60° and other non-normal angle elbows.
Copper Nickel elbow first by its radius of curvature to points, can be divided into long radius elbow and short radius elbow. Long radius elbow refers to its curvature radius being equal to 1.5 times the tube diameter, that is, R=1.5D. The short radius elbow refers to its radius of curvature equal to the outer diameter of the tube, ie R=1.0D.

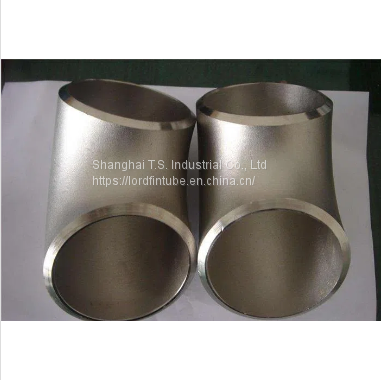

Product Name DIN 86090 45 Degree Copper Nickel Short Radius Elbow
- Size range: DN15 to DN500, OD20 - OD508
- Standard: DIN 86090
- Material: Copper Nickel Alloy, CuNi10Fe1.6Mn WL 2.1972, ASTM B151 UNS C70600 CuNi 90/10, ASTM B151 UNS C71500 CuNi 70/30, EEMUA 144 UNS C7060X
- Thickness: 1.5mm - 15mm
- Pressure: 10bar, 14bar
CuNi Short Radius Elbow - 45°- DIN 86090
- Standard: DIN 86090
- Size: DN15 - DN500
- Thickness and Pressure Rating: 10bar, 14bar
- Material: Copper Nickel CuNi10Fe1,6Mn, EEMUA 145 UNS 7060X, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
CuNi Short Radius Elbow - 90°- DIN 86090
- Standard: DIN 86090
- Size: DN15 - DN500
- Thickness and Pressure Rating: 10bar, 14bar
- Material: Copper Nickel CuNi10Fe1,6Mn, EEMUA 145 UNS 7060X, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
CuNi Long Radius Elbow - 45°- DIN 86090
- Standard: DIN 86090
- Size: DN15 - DN500
- Thickness and Pressure Rating: 10bar, 14bar
- Material: Copper Nickel CuNi10Fe1,6Mn, EEMUA 145 UNS 7060X, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
- Type: Seamless
CuNi Long Radius Elbow - 90°- DIN 86090
- Standard: DIN 86090
- Size: DN15 - DN500
- Thickness and Pressure Rating: 10bar, 14bar
- Material: Copper Nickel CuNi10Fe1,6Mn, EEMUA 145 UNS 7060X, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
- Type: Seamless
CuNi Long Radius Elbow - 45°- EEMUA 146
- Standard: EEMUA 146
- Size: DN15 - DN500
- Thickness and Pressure Rating: 16bar, 20bar
- Material: Copper Nickel CuNi10Fe1,6Mn, EEMUA 145 UNS 7060X, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
- Type: Seamless
CuNi Long Radius Elbow - 90°- EEMUA 146
- Standard: EEMUA 146
- Size: DN15 - DN500
- Thickness and Pressure Rating: 16bar, 20bar
- Material: Copper Nickel CuNi10Fe1,6Mn, EEMUA 145 UNS 7060X, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
- Type: Seamless
CuNi Long Radius Elbow - ASME SB16.9
- Standard: ASME SB16.9
- Size: 1/2" - 24″
- Thickness and Pressure Rating: Sch5s, Sch10s, Sch40s, Sch80s
- Material: Copper Nickel CuNi10Fe1,6Mn, ASTM B466 UNS C70600, CuNi 90/10 (C70600), CuNi 70/30 (C71500)
- Type: Seamless
copper nickel 70/30 welded pipe fittings, Cu-Ni 70/30 elbow, reducer, copper-nickel 70-30 end pipe cap manufacturer, cupro-nickel 70-30 swage nipple, copper-nickel equal cross supplier.
TS is an ISO 9001: 2015 certified company, that offers innovation, quality, and service packaged into a durable product that embodies excellence. We, at TS, are committed to delivering a great degree of quality, as well as standard in prime goods and services for challenging industries. Our customers are our priority, and we guarantee their satisfaction.
We are a manufacturer, trader, stockist, supplier, and exporter of Copper Nickel 70/30 Pipe Fittings, specially carved out to meet the demands of the challenging, seawater service applications. Identified as an advantageous and economical alternative to expensive Nickel pipe fittings, our Cu-Ni 70/30 Seamless Pipe Fittings maintain the guard against corrosion, being reliable to join pumps and valves and high-pressure steam lines.
With 70% Copper and 30% Nickel, our CuproNickel 5D Elbows have a tensile strength of 52,000 psi, making them robust enough to perform in high-velocity seawaters and brackish waters. Whereas, UNS C71500 Pipe Couplings resist biofouling forming a protective oxide layer, able to work under high pressures and temperatures as well as turbulence-creating areas.
We produce customizable products that are fully certified and 100% durable.
Copper Nickel 70/30 Pipe Fittings Specifications:
- Cupro Nickel 70/30 Buttweld Fittings Equivalent Grade
- Copper Nickel 70-30 Pipe Fittings Chemical Composition
- ASTM B122 Copper Nickel Applications Industry
- Copper Nickel 70/30 Pipe Fittings Main Export Countries
- Other Types Of Copper Nickel Buttweld Pipe Fittings
- Countries We Export
ASTM B467 copper-nickel buttweld elbow, cupro-nickel 70/30 seamless butt, weld fittings exporter, Cu-Ni 70/30 long radius bend, copper nickel 70/30 pipe fittings supplier.
