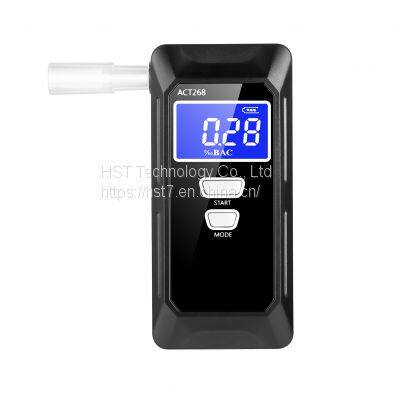

Product Details
Product Description
Product Description
Item
| Specifications
|
Sensor
| Semiconductor Sensor
|
Reference standard
| EN16280
|
Certificate
| CE
|
Response Time
| 3-5 seconds
|
Blowing Time
| About 5 seconds
|
Detection Range
| 0.00~2.00‰BAC
Or 0.000~0.200%BAC
Or 0.000 ~1.000mg/L
(if ‰BAC and mg/L convection factor is 2.0)
i.e. 0.50‰BAC = 0.050%BAC = 0.250mg/L
|
Sensitivity
| 0.001% BAC
|
Sensor Accuracy
| ±0.010 at 0.050% BAC;>0.050% BAC: ±20%
|
Display
| About 2.0 inch LCD
|
Record
| 50 test records be stored
|
Power Supply
| 2 ×1.5V AAA alkaline batteries
|
Optimal Operating Temperature
| 0°C~50°C
|
Dimensions
| 110*52*25mm
|
Packing Accessories
| 5* mouthpieces /1* user manual /1* gift box
|
Product features:1.Key parameters such as sampling analysis, test accuracy and display range designed according to the EN 16280 standard, which drafted and officially adopted by the European Union in the field of breath alcohol testing devices used by the general public in the year of 2012.
2.Units setting (2 software version for option):
1) Version 1: mg/L, ‰, %, unites can be switched freely by user.
2) Version 2: factory fix set the unit according to customer's requirement before shipment, end user cannot reset the unit.
3.Low voltage warning.
4.Max memories: max 50 test records be stored.
5.Sound warnings that exceed preset criteria.
Details Images
Intelligent self-checking
Wait for preheating
Waiting for the blowing test
After 19s of preheating, “BLOW” flashes about 25 seconds with beep tones and the device is ready to test , please carry out the measurement within this period, otherwise, the device will power off automatically.
When sampling,keep the mouthpiece into your mouth and blow continuously for 5s, only stop blowing until the beep tone stop together with status bar full displayed.Two short “di-di” sounds will be heard when the sample collection is successful, test result will be displayed accordingly.
mg/L
‰BAC
The display unit can be adjusted
%BAC
Test records review Device will record recent 50 times of testing results.
Low battery detection
Improve the circuit design to break through the bottleneck that the semiconductor alcohol tester battery is not durable. Two AAA alkaline batteries can be tested more than 200 times.
>>
