Superior Efficient 1200 kg Large Capacity Drying Machine European Type Hopper Dryer for Plastic Machinery

Product Description

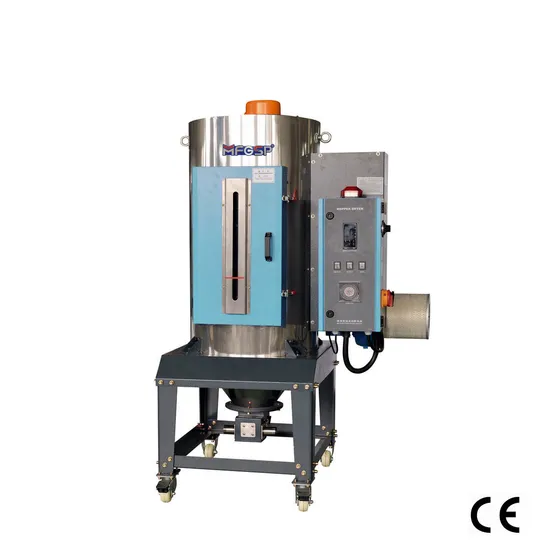

European type Hopper Dryer

Performance characteristic:
1.The hopper is made from high quality of stainless steel to ensure that the materials won't be polluted.
2.The out layer is made of special material which is fashionable and attractive.
3.The high-efficiency insulation material between internal layer and out layer to reduce the heat loss.
4.Hot air down-blowing design ensures the even temperature in the hopper.
5.The temperature is controlled by the import PID temp.controller to ensure the precision temperature.
6.The 24H timer can achieve device startup in advance to improve work efficiency.
7.Equipping with the cleaning door,which is convenient for cleaning the hopper.
Specifications:

Model	Capacity (kg)	Heater Power (kw)	Blower Power (w)	External Dimensions LxWxH(mm)	Weight (kg)
SHD-3L	2	1	30	285x340x970	15
SHD-5L	3	1	30	395x390x610	30
SHD-40L	25	3.2	80	620x680x1085	50
SHD-80L	50	4.2	120	650x780x1310	60
SHD-120L	75	5	120	680x790x1430	65
SHD-160L	100	7	150	740x970x1560	70
SHD-230L	150	7	155	770x1020x1730	80
SHD-300L	200	12	380	920x1120x1980	100
SHD-380L	250	14.5	380	950x1170x2080	130
SHD-460L	300	14.5	400	1120x1010x2120	160
SHD-600L	400	18	550	850x1400x2300	200
SHD-700L	500	18	550	990x950x2100	230
SHD-800L	600	24	750	990x950x2290	250
SHD-1000L	700	24	750	1100x1050x2300	320
SHD-1100L	800	24	1100	1100x1050x2500	370
SHD-1500L	1000	28	1100	1145x1100x2700	490
SHD-1700L	1200	30	1500	1200x1250x3100	550
SHD-2000L	1500	35	2200	1200x1360x3330	600
SHD-2800L	2000	40	2200	1385x1360x3330	700
SHD-3500L	2500	45	3000	1400x1360x4170	800
SHD-4000L	3000	45	3000	1500x1460x4170	880

Diagram of installation:
