Factory Price Ecd-Q5000 Waterproof Industrial Hydraulic Joystick Radio Remote Control for Loader

Product Description

INDUSTRIAL JOYSTICK REMOTE CONTROL ECD-Q5000: 4 Buttons & 2 Cross Putter Strong penetrating power Whether it's powering on/off or action commands, it can quickly respond and enjoy the convenience of wireless control. Product Parameters

Model	ECD-Q5000	ECD-Q5000-A	ECD-Q5000-B
Button	4 buttons & 2 cross putter	4 buttons & 2 cross putter	4 buttons & 2 cross putter
Protection level	IP65
Corrosion protection grade	WF2
Transmit power	≤10MW
Rated power of receiver	≤6MW
Response time	≤20MS
Channel spacing	25HZ
Moulation mode	GFSK
Signal transmission rate	9600BIT/S
Signal reception sensitivity	-115DBM
Function customization	Accepted
OEM/ODM	Accepted
Working humidity range	0~97%RH
Adaptive temperature	-40°C~+85°C
Button life	12 million times
Shell material	PA66+ high quality fiber
Transmitter supply voltage	DC 1.8-3.6V
Receiver supply voltage	AC/DC 12V-65V AC/DC 65V-440V
Transmitting frequency	315MHZ/433MHZ/868MHZ/915MHZ
Remote control distance	225 Meters/Can be customized to 5km
Power supply	Matching battery (lithium battery): single battery ≤100WH

Product Description Signal is Stable The signal is stable and can operate normally in complex construction environments. The signal has strong penetrating power. The remote control distance is long. The transmission distance can be customized according to actual needs.
Waterproof and dustproof, completely preventing the intrusion of foreign matter and dust.
IP68 waterproof, dust-proof; Cold and heat resistant(-40ºC-80ºC); Anti-fall and anti-crushing; Shockproof and impact resistant.
Our Advantages
1. Designed with a battery voltage warning device, it automatically shuts off the circuit when the voltage is insufficient.
2. Adopting intelligent wireless technology to design circuits, with strong penetration and signal fearless interference.
3. The remote control casing is made of PA66 and high-quality fiber, which is one-time die-cast, comfortable to touch, and resistant to falling and pressure. 4. The remote control relay adopts the American brand TE, which is a leader in the relay field, with over 14000 global technology patents and decades of experience in relay development and production, ensuring excellent product quality.
5. The main chip of the remote control adopts Texas Instruments (TI) and South Korean ABOV brands, providing customers with high energy efficiency, ultra stable, and ultra safe semi conductor solutions and product services. It adopts a low-power design method and can be used normally for up to one month. 6. The remote control button adopts the world-renowned Alpine brand, with a unique structure, optimized materials, advanced technology, comfortable touch, and long service life. The embedded parts, base parts, spring parts, button parts, and cover parts of the button all use the best materials and processing technology to ensure the overall quality of the button, ensuring a service life of 12 million times, sensitive contacts, and quick response.
7. The remote control transistor adopts the Japanese brands of RENESAS and ROHM. As a leading manufacturer of microcontrollers and analog power devices worldwide, RENESAS and ROHM have taken the forefront in product solutions and system solutions. Detailed Photos

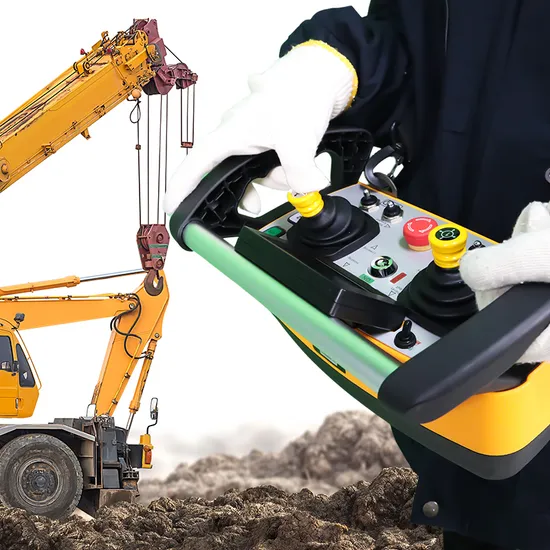

Details Images 1. Cross Joystick Super strong safety design, over 4.3 billion kinds of non-repeated safety code, failure self-diagnosis and frequency automatic locking track etc. 2. LED Display LED high-definition display can display power, time, signal strength, control status, etc. 3. Security Lock Open the security lock when turned on, the display show sparameters, the system starts. 4. Function Buttons Button functions can be customized according to customer needs. 5. LED Fill Light Can be used as a supplementary light source when lighting conditions are poor. 6. Leather Bandage Shoulder-style leather bandage with soft and breathable lining, comfortable to wear and more convenient to operate.
Customizable Sections Applications Scenarios
Aplication of Industrial Remote Control lt can be used in most fields. At present, the ECD remote control system is mainly used in eight fields: lifting machinery, construction machinery, port machinery, engineering machinery, industrial customization, agricultural and forestry machinery, computer numerical control machine tools, explosion-proof machinery, and special vehicles, such as cranes, engineering machinery, lifting platforms.travelling vehicles, hydraulic equipment, automobile tailboards,breakdown trucks, conveyor belts, industrial equipment androbots. Packaging & Shipping
Company Profile
HENAN NOMI ELECTRONIC TECHNOLOGY CO., LTD, is located in Zhengzhou Airport Intelligent Manufacturing Industrial Park, Henan Province. It is a technology development enterprise integrating R&D, design, manufacturing, operation and sales. Nomi Electronics has long been focusing on the R&D and practice in thefield of industrial wireless remote control. After years of development, it has become aleading enterprise in the field of industrial remote control, which integrates independent research and development, technical consultation and system integration, and integrates remote control and intelligence of equipment.
The company continues to deepen the field of wireless remote control, helping the industry to develop in asmarter, more efficient and safer direction Nomi Electronics regards "creating brilliance, only quality" as its business principle and "always providing safe and reliable industrial wireless remote control products" asits enterprise mission. Committed to developing safe, reliable, durable, andhigh-quality industrial wireless remote control equipment, improving work efficiency and providing operators with a more convenient and safer operating environment. Inindustry, construction, forestry, mining, etc. The field realizes the perfect unification of mechanical equipment and intelligent control.
1.QUALITY
Good material makes a good quality, we have been guided by the principle of quality first.
2. ODM & OEM We support ODM /OEMservice, can better satisfy the customers.
3. SERVICE
We meet all the needs of customers,customer-oriented, for customers tosolve practical problems.
Certifications & Exipition
FAQ
1.What is your minimum order and payment method? We can accept sample orders for trial orders. T/T100% for less than USD 10,000, and T/T 50% can be used for more than 10,000 US dollars. 2. Will you provide after-sales service?
Of course
1) all products are subject to strict factory quality inspection before packaging. 2) all the products are packed in our factory, and the second package is delivered byexpress delivery before shipment. 3) if there are any problems during operation or installation, please contact us freelyand we will solve them with professional guidance. 3. ls there a warranty?
Of course. all our branded products have a 12-month warranty period. we provide24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us. 4. What certificates are approved for your product?
We have CE, FCC, RoHS, ISO9001 and so on. 5. Can you customize it according to my needs? You can send me inquiries according to your needs. we can customize them with technical engineers. 6. ls your price the lowest?
Do you mind the quality? The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price towork well? 7. ls the product 100% assembled? Yes, all the products are 100% assembled.

---
