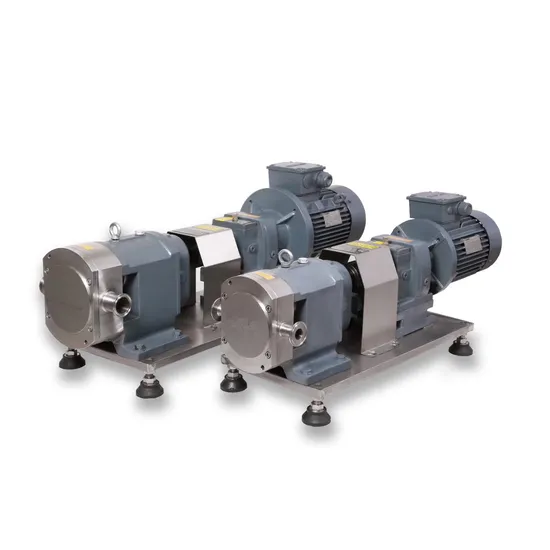

SS304 Sanitary Motor Rotary Lobe Pump for Liquid Transfer
Basic Info.
Pressure Medium
According to Request
Position of Pump Shaft
Horizontal
Material
AISI 304 or AISI 316L
Transport Package
Wooden Case
Specification
0.55Kw-22Kw Power
Origin
Wenzhou, Zhejiang, China
Production Capacity
200PCS/Month
Product Description
Product Description:
| Product Name: | Sanitary Lobe Pump |
| Material: | AISI 304 or AISI 316L |
| Standard: | SMS,DIN,RJT,ISO/IDF |
| Connection Way: | Clamp,Male,Flange,Weld |
| Mechanisal Seal: | EPDM |
| Power: | 0.55kw-22kw |
| Rate: | 50Hz or 60Hz |
| Max Flow: | 62m3/h / 272GPM |
| Max Pressure: | 12bar/174PSI |
| Max Working Temperature: | 120oC/248oF |
| Max Rev.: | 1450rpm |
| Internal Surface Finishing: | Ra≤0.6 |
| External Surface Finishing: | Mirror Polish |
Product Gallery:
Packaging & Shipping
>>
