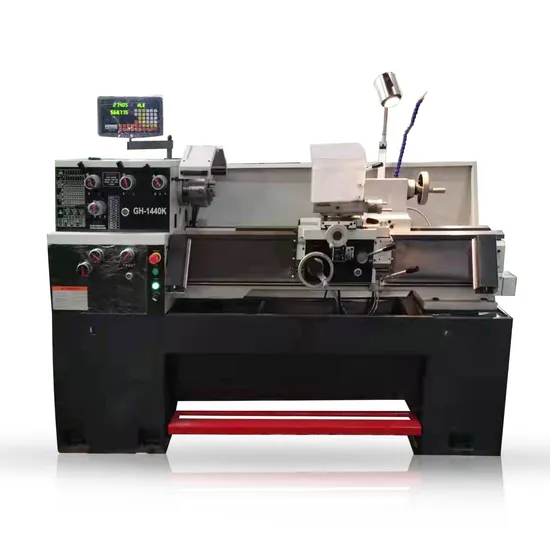

Factory Outlet Engine Bench Manual Lathe 1440 for Metal

Product Description

Products Description
Features:
1Hardened and ground bedways 12 speeds all geared headstock
2.4KW(3hp) motor Foot brake giving rapid braking
Emergency stop button equipped on the front of headstock
Jog button for easy gear engagement and inching spindle
Extra safety switch shuts down machine automatically when changing belt or gear.
Specifcation

Max. Swing over bed	356mm
Max. Swing over carrige	210mm
Max. Swing over gap	508mm
Width of bed	260mm
Distance between centers(Two centers)	750/1000 mm
Taper of spindle bore	MT-5
Diameter of spindle bore	40mm
Number of spindle speeds	12
Range of spindle speeds	40-1800 rpm
spindle nose	D4
Diameter of leadscrew	22mm
Pitch threads of leadscrew	4mm
Overall dimemtions of lathe(L xWxH)	1900x710x1170 mm
Packing size of lathe(LxWxH)	1900x760x1435
Net weight	1200KGS
Gross weight	1300KGS

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
