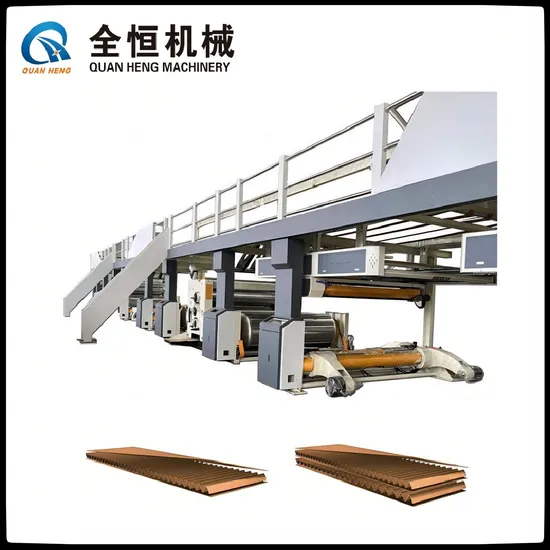

Qh Pack Qhcl150-2200-5ply High Speed Corrugated Paperboard Making Line Carton Box Production Line Machine

Product Description

Product Description
QHCL150-2200-5PLY Automatic Carton box corrugated paperboard production line Product Parameters Device configuration and technical instruction

Specification	Equipment name	QTY	Remark
YV5B	Hydraulic shaftless mill roll stand	5	Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.Guide rail length 6000mm,use of plate welding. Rail length6000mm,trolley used 10mm plate welding.
	Paper trolley	10
RG-1-600	Top paper preheat cylinder	2	roller ¢600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
RG-1-600	Core paper preheat cylinder	2	roller ¢600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
SF-320L	Fingerless type single facer	2	Corrugated main roller ¢320mm,material with Tungsten.Penumatic ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen.
RG-3-600	3ply preheater	1	roller ¢600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
GM-20	2ply glue machine	1	Glue roller diameter 269mm.Each independent frequency motor drive, manual adjustment glue gap.
ZDF	heavy type conveyor bridge	1	200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction.
SM-F	Double facer	1	Rack 360 mm GB channel,Chrome hot plate 600 mm *22 pieces,The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor.
QHSS	Electric thin blade slitter scorer	1	Tungsten alloy steel, five knives eight lines,electric lift and right, electric adjust blade and manual adjust scorer.
NC-150	NC cutter helical knives	1	Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
DM-LM	Electric angel stacker	1	With foot stwich and electric control move out.
ZJZ	Glue station system	1	Customers -owned pipeline.Glue configuration is composed by carrier tank,main tank,storage tank,and send plastic pump,back plastic pump.
QU	Gas source system	1	Air pump,pipeline is prepared by the customers.
ZQ	Steam system	1	Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.traps,pressure table and so on.Customer-owned boilers and pipes.
DQ	Electrical control cabinet system	1	Electronic control system::fingerless single facer,driving part,NC thin blade slitter scorer,double facer,glue machine all adopt frequency motor,delta frequency control system.operation interface easy and convenient,Speed display control cabinet with each unit speed display, the unit call, emergency stop function.

Main technical parameters and requirements in production line

1	Effective width		2200mm	2		Design produce speed	150m/min
3	Three layer work speed		140m/min	4		Five layer work speed	120m/min
5	Seven layer work speed		-------------------	6		The highest change single speed	100m/min
7	Longitudinal separation accuracy		±1mm	8		Cross-cutting precision	±1mm
note	Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature.
	Top paper index	100g/m2--180g/m2 Ring crush index(N.m/g)≥8 (Water containing8-10%)
	Core paper index	80g/m2--160g/m2 Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
	In paper index	90g/m2--160g/m2 Ring crush index(N.m/g)≥6 (Water containing8-10%)
9	Flute combination
10	Steam requirement	The maximum pressure 16kg/cm2			Common pressure10-12kg/cm2			use4000kg/Hr
11	Electricity demand	AC380V 50Hz 3PH			Total power≈250KW			Running Power≈150KW
12	Compressed air	The maximum pressure 9kg/cm2			Common pressure4-8kg/cm2			use1m3/min
13	space	≈Lmin80m*Wmin12m*Hmin5m(The actual drawing to provider to provide audited prevail)

Customer-owned section

1,Steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline.

2,Air compressed machine,air pipeline,glue conveying pipe.

3,Power supply,wires connected to the operation panel and line pipe.

4,Water sources,water pipelines,buckets and so on.

5,Water, electricity, gas flush mounting civil foundation.

6,Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material.

7,Oil equipment,lubricating oil,hydraulic oil,lubricating grease.

8, installation,commissioning of food, accommodation.And provide installers with the installation.
